CNC Lathe machine Ck Serise

Product Description

Product Description

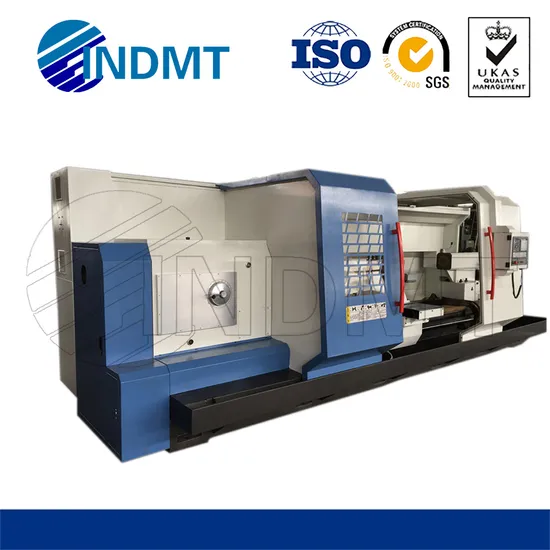

CK61160L machine is a large horizontal flat bed CNC lathe,with SIEMENS 808D.
two linkage control axis, Z axis and X axis adopt ball screw and servo motor which can move vertically and horizontally, the semi closed loop control, with good accuracy and repeatability of positioning precision.
Our Advantages
1.The main components and structure were optimized, the stability is excellent.
2.It is suitable for energy, chemical, light industry, machinery, paper-making, automotive, aerospace and other industries.
3.It has the advantages of high precision, large power, high rigidity, high degree of automation.
4.It can be processed complex shape of shaft, sleeve, disc parts.
Such as turning, the outer cylindrical surface, conical surface, circular surface, surface, cutting, chamfering, threading, strong adaptability, high processing efficiency, low rejection rate, good product consistency, easy programming, simple operation, complete function.
Specification

ITEM	UNIT	VALUE
Max. Swing diameter	mm	1250.00
Max. Roll diameter	mm	865.00
Max. Turning diameter	mm	1800.00
Max. Roll length	mm	2000.00
Centre height	mm	625.00
Guide rail width	mm	755.00
Maximum workpiece weight	Ton	6.00
The headstock spindle taper		Morse No. 6
The front axle spindle diameter	mm	200.00
Mainshaft bearing		NSK Japan
Spindle chuck		1000mm(special for lathe chuck)
Spindle speed		AC stepless 4~470 rpm (4 file)
Turret size	mm	300*300
Cutter diameter	mm	40*40
X axle travel distance	mm	650.00
Automatic Turret position	position	4
X/Z fast moving speed	Mm/min	3000/6000
Numerical control system		SIEMENS 808D/828D
Main power source		380V /50Hz
Machine lathe size (length x width x height)	mm	5300*2470*2300
Machine lathe weight		10 T

FAQ
1.How can I choose the most suitable CNC Roller Notching machines ?
A: Please tell me your roller size , it is better to send us the roller's drawing.we can choose the most suitable CNC roller machine model for you.
For Details you can check Dalian indus machinery technology co.ltd indmtgroup.en.made-in-china.com
2.What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.What's the Payment Terms ?
A : T/T ,30% advance payment after order ,70% balance payment before shipment ;
Irrevocable LC payment at sight .
4.What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5.How long is the production time
A:The production time for Non-standard CNC machine is 30-45 days
