CH Series Pharmaceutical Trough Type Mixer
| US$2,500.00-8,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CH
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Capacity
50-500L
Mixing Drum Shape
Drum
Stirring Type
Spiral
Warranty
All Its Life
Working
by Rotation
Certificate
CE
Material
SS304, SS316L
Spare Parts
Available
Advantage
Easy Operation Better Price
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating Type
Cycle Operating
Transport Package
Export Plywood Case
Specification
980*425*820mm
Origin
Jiangsu
Production Capacity
50set/Month
Packaging & Delivery
Package Size
98.00cm * 43.00cm * 82.00cm
Package Gross Weight
220.000kg
Product Description

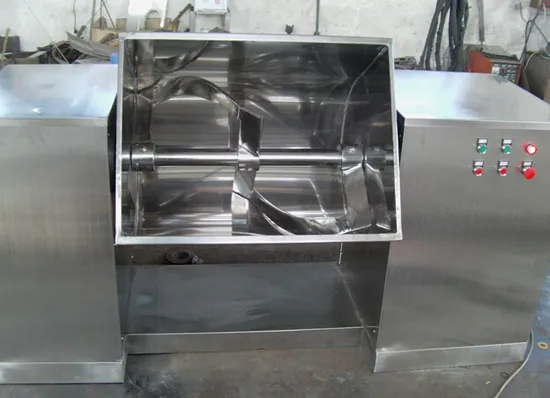

CH Series Trough Type MixerMain Application :
As a whole stainless horizontal trough typed mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.
Working Principle:
S type agitating paddle is rotated, by mechanical driving, which pushes the material to turn repeatedly and to mix uniformly. operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mixing quality of each batch of material and realizing high homegeneous mixing.
Technical Parameter:
| Model | Total volume (L) | Shaft speed (r/min) | Motor (kw) | Discharge motor(kw) | Overall dimension(mm) | weight(kg) |
| CH50 | 50 | 24 | 1.1 | 0.75 | 980×425×820 | 220 |
| CH100 | 100 | 24 | 2.2 | 0.75 | 1280×440×900 | 350 |
| CH150 | 150 | 24 | 3 | 0.75 | 1590×660×1075 | 500 |
| CH200 | 200 | 24 | 4 | 0.75 | 1590×660×1125 | 600 |
| CH300 | 300 | 24 | 5.5 | 1.1 | 1890×700×1235 | 750 |
| CH400 | 400 | 24 | 5.5 | 1.1 | 2140×705×1265 | 1000 |
| CH500 | 500 | 22 | 7.5 | 1.5 | 2435×900×1385 | 1350 |
