Mini Type Film Extrusion Blowing Machine Film Blown Small Plastci PE Extruder Machines

Product Description

Mini Type Film Extrusion Blowing Machine Film Blown Small Plastci PE Extruder Machines HDPE/LDPE Film Blowing Machine
High accurate mould and effective air colling system
High precision correct errors system

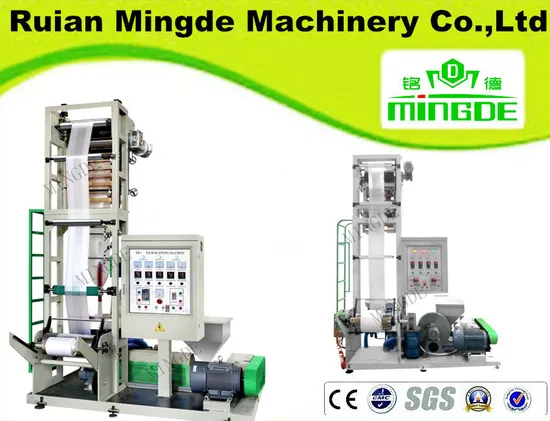

Film Extrusion Machine (MD-HM35)
The machine body is mode of square steel, with frequency converter contolled traction, friction single winder and elevator, which is suitable for blowing HDPE/LDPE industrial and agriculture film.

Model	MD-HM35	MD-HM45	MD-HM50	MD-HM55
Suitable material	HDPE LDPE LLDPE
Max. Film width (mm)	400	500	600	800
Film thickess (mm)	HD: 0.008-0.08 LD: 0.02-0.10
Max. extrusion output HD	20KG/HR 25KG/HR	35KG/HR 40KG/HR	40KG/HR 50KG/HR	50KG/HR 60KG/HR
Gear box	133	146	146	173
Screw Diameter	35mm	45mm	50mm	55mm
Screw L/D ratio	30:1	28:1	28:1	28:1
Driving motor	7.5KW	11KW	15KW	18.5KW
Die size	HD: 50mm	HD: 60mm	HD: 60mm	HD: 60/80mm
AIr blower	1.1kw	1.5kw	2.2kw	2.2kw
Air ring	470	620	620	620
Center Steady stick	1pc
Take-up roller width	450mm	550mm	650mm	850mm
embossing roller width	350mm	450mm	550mm	750mm
take-up speed	10-80M/min	10-80M/min	5-60M/min	5-60M/min
take-up motor	0.75kw	0.75kw	0.75kw	1.1kw
Winding roller width	450mm	550mm	650mm	850mm
winding motor	10N.m	1.1KW	1.1KW	1.1KW
Winding speed	10-80M/min	10-80M/min	5-60M/min	5-60M/min
Cover dimension	1.4x2.0x3.2m	1.45x2.28x3.2m	4.0x1.1x4.0m	4.2x1.55x4m

Our Advantages:
Film Extrusion Machine (MD-HM35)
1. ISO 9001: 2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated
2. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience)
3. Perfect after-sale system: We have more than 5 experienced technicians work abroad.
5. Yearly Production Capacity -- 200-300 sets
6. Prompt Reply Within 12 Hours
Film Extrusion Machine (MD-HM35)
RUIAN MINGDE Machinery Co.,ltd.has been the symbol of high quality and excellent service in machiery areas for many years ,researched and developed our machines on basis of advanced technology introduced from developed countries.as a professional and experienced manufacturer in china ,we're able to produce many kinds of machines like film blowing machine,bag making machine,paper bag machine,packing machine,printing machine and leather & shoe machines,ect.



Film Extrusion Machine (MD-HM35)
Optional Device:
1. Auto Loader
2. Corona
3. Automatic Air Supply Device
New Type High Technologe
