How to Efficiently Weld Copper Use Laser Welding Machine

Product Description

AMB Laser Sytem Description
-What is AMB Laser system ?
-Adjustable Mode Beam.
-Hanwei laser has been devoted to research and develop the AMB laser beam welding system for many years.
-What are AMB Laser system advantages ?
-High efficiency welding, Less Spatter - Absorb more laser internally in keyhole and weld pool.Especially for high reflective materials laser welding such as gold, silver, copper, brass, aluminium,galvanized materials which with high reflective features attend to laser.
-Fast welding.
-More throughput.
-Customized laser beam.
-Low usage cost.
-Easy to maintenance.
To sum up, Improve laser welding quality and speed.

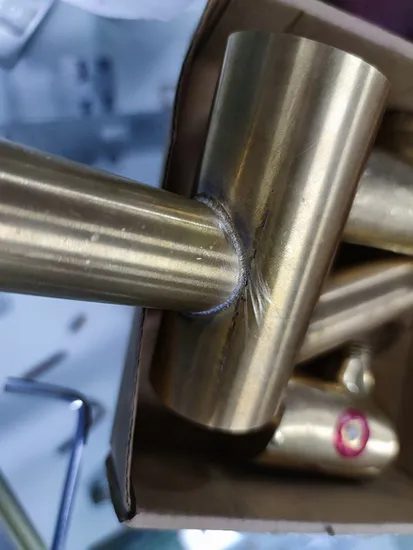

-How to weld copper material use AMB laser system ?
-The welding characteristics of copper and copper alloys are difficult to dissolve, easy to oxidize, and good thermal conductivity.
-Copper and copper alloys are not easily melted and oxidized, and problems such as "cold welding", "cracks", and "oxidation" often occur during welding.In addition, copper and copper alloys have excellent thermal conductivity and a large coefficient of thermal expansion, making them prone to deformation during welding.
-Copper and copper alloys can be welded using welding methods such as TIG, MIG, argon arc welding, manual arc welding, etc.
-Due to the easy oxidation of copper and copper alloys, anti oxidation measures need to be taken during welding. Welding areas can be protected with protective agents such as argon or aluminum oxide to prevent oxidation reactions from coming into contact with air
-Common laser welding method in the laser market is various laser power of Fiber laser welding. But copper and copper alloys have high reflective features attend to fiber laser. It's often causes damage to the laser welding head and laser source.
-Hanwei laser has been devoted to research and develop the AMB laser beam welding system for many years.The stabilization of the weld pool virtually eliminates spatter, maximizes uptime and significantly reduces rework of welded parts.
-AMB Benefits Welding in Automotive Applications Providing Spatter-free Welds with Improved Weld Aesthetics and Formability. AMB has proven to be 50% faster than industry standard welding speeds while preserving quality and consistency.
AMB Laser System Applications
-New energy resources product welding, Sheet metal welding, Hardware, kitchen, jewelry, elevator panel, household electrical appliances, corrugated pipe, battery, Solar energy, Optical communication cover, aviation parts.
Special for Copper,Aluminium and other high reflective materials welding industry.
AMB Laser System Specifications

Model	HW-DF-3000W/4000W/6000W
Input voltage	AC220V / 380V 50Hz/60Hz
Wavelength	1068~1080nm
Output power	2000W + 1000w/2000w		2000W+4000w
Working mode	CW
	QCW
	PWM
Cooling way	Water cooling
Equipment power	12Kw	16Kw	24Kw	48Kw
Dimension size	Customized
Weight	Customized

HanWei Laser has Two types of AMB Laser welding system series to meet the different needs of different fields in the market AMB Benefits Welding in Automotive Applications Providing Spatter-free Welds with Improved Weld Aesthetics and Formability. AMB has proven to be 50% faster than industry standard welding speeds while preserving quality and consistency.AMB Laser sytem with 4-axies (X,Y,Z, Rotary) Automated workbench have efficient completion of various automated production tasks. Welding quality and efficiency high throughput.
