Industrial Plastic Machine Parts Supplier for Model up-140t
| US$15,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-140T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description

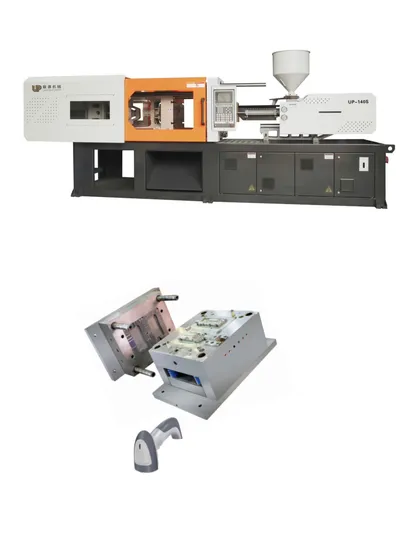

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
Our China servo injection molding machine offers advanced features to enhance your manufacturing process:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar (Green column).
Nozzle Parameters: Specifies spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for precise molding.
Code Mold Parameters: Covers mold hole and slot size for accurate coding.
Ejection Mechanism: Details ejection point position, ejector rod diameter, force, and stroke for efficient mold ejection.
Mold Opening Stroke: Provides information on opening stroke and maximum opening distance for optimal performance.
Experience the reliability and precision of our standard injection molding machine designed to meet your production needs.
| Technical Parameters | Model UP-140T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 38 | 42 | 45 |
| Shot Volume (cm3) | 215 | 260 | 302 |
| Injection weight (g) | 194 | 237 | 272 |
| injection pressure (Mpa) | 186 | 152 | 132 |
| Screw speed (rmp) | 215 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1400 | ||
| Open stroke (mm) | 380 | ||
| Max Mold height (mm) | 450 | ||
| Min Mold height (mm) | 135 | ||
| Space between tie bars(mm) | 420*420 | ||
| Ejector force (KN) | 46 | ||
| Ejector stroke (mm) | 120 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 13(14) | ||
| Heating power (KW) | 8.2 | ||
| Machine dimension (M) | 4.2*1.2*1.9 | ||
| Machine weight (T) | 3.4 | ||
| Oiltank cubage (L) | 190 | ||
