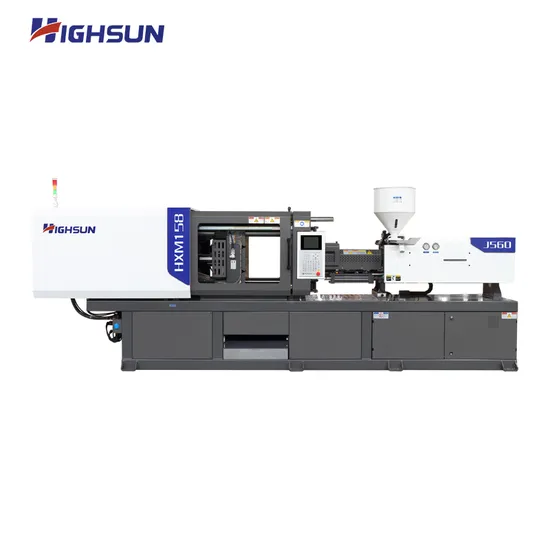

Servo Plastic Injection Molding Machine Hxm158 Pet
| US$17,500.00-88,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM158 PET
Type
Plastic Injection Molding Machine
Structure
Horizontal
Plastic Type
Pet
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
380V,50gzm According to Countries
Showroom Locate
Maylasia,Russia,Turkey,Uzberkistan
Condition
New
Injection Weight
350 G
Space Between Tie Bar
460*410 mm
Machine Weigh
4.3 Ton
Transport Package
Standard Package
Specification
4.93*1.31*1.93
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year
Product Description
Specializing in PET series of injection molding machines1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;
1.Picture
| MODEL:HXM158PET | |||
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 45 |
| SCREW L/D RATIO | L/D | 24 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 318 | |
| INJECTION WEIGHT(PET) | g | 350 | |
| INJECTION PRESSURE | MPa | 177 | |
| INJECTION RATE | g/s | 144 | |
| PLASTICIZING CAPACITY | g/s | 25 | |
| SCREW SPEED | rpm | 200 | |
| CLAMPING UNIT | CLAMP FORCE | KN | 1580 |
| OPEN STROKE | mm | 400 | |
| MAX. MOULD HEIGHT | mm | 500 | |
| MIN. MOULD HEIGHT | mm | 150 | |
| SPACE BETWEEN TIE-BARS (W×H) | mm | 460*410 | |
| EJECTOR STROKE | mm | 150 | |
| EJECTOR FORCE | KN | 80 | |
| EJECTOR NUMBER | n | 5 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR POWER | KW | 18.5 | |
| HEATING POWER | KW | 17.95 | |
| MACHINE DIMENSION (L×W×H) | m | 5.0*1.32*1.93 | |
| MACHINE WEIGHT | t | 4.5 | |
| OIL TANK | L | 253 | |
2.Application
3.Processing,assembling production line
5.Loading containers
6.Customer case
Client in Uzbekistan produce PET preform for minaral water factory.
7.Client in Malaysia
