Mke High Speed 4000ml Large Capacity Laboratory Refrigerated Centrifuge for Pharmaceutical Factories Biochemistry

Product Description

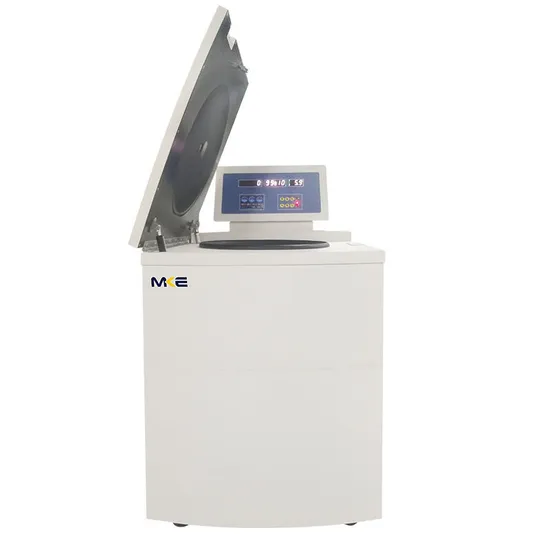

MKE High Speed 4000ml Large Capacity Refrigerated Centrifuge for Pharmaceutical Factories Biochemistry Product Description Floor standing refrigerated centrifuge FR22(old model:GL-22MC) which can process the large capacity fixed rotor such as 4*1000ml and can also process the swing out rotor ,widely used in the the fields of blood stations, pharmaceutical factories, biochemistry, biological products, etc. It is the ideal instrument for blood separation, protein precipitation and cell collection and conforms to CE security certification, ISO9001 and 13485 quality certification. Application Advantages · Speed range up to 22000r/min · Max.RCF: 53028xg · Max.capacity: 4*1000ml Observations window on lid for speed calibration and noise measurement.
· Microprocessor control with frequency conversion A.C. motor drive
· LCD Display the parameters of Speed, Timer, RCF, Rotors,program(Memory),Acceleration&Deceleration information and Error code information.
· Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing. · Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. .The stored parameter: combination remains in the memory even after the centrifugation has been switched off. · Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect. · Automatic lid-locking and holding during rotor run · Easily exchangeable rotors, special rotor connector which makes it easy to load and unload rotor. · Automatic troubleshooting with indication of error code and alarm on the screen. · Noise level lower than 58 decibel at the highest rotational speed. · Automatic rpm/rcf conversion. · Automatic rotor identification system, coded rotor identification prevents the rotor from over speeding. · CFC free refrigeration system with high efficiency environmental protection refrigeration system and dual circuit control for precise temperature control Specification

Max. RPM / Max.XG	22000rpm/ 53028 x g	Speed accuracy	±10rpm
Max.Capacity	4*1000ml	Noise level (dB)	<=58dB(A)
Display	Touch LCD color+digital screen	Temperature control range	-20+40
Safety lid lock	Yes	Temperature control accuracy	±1
Lid drop protection	Yes	Program memory	30
Motorized lid open & close	Yes	Imbalance cut-off	Yes
Parameters on display window	RPM (RCF), Time, ACC, DEC	Time control	1-99minutes 59s adjustable
Power requirement	5000W	Power supply	AC220V,50HZ,10A
Dimension (W x D x H, mm)	920x790x1700mm	Weight without rotor (kg)	250KGS

ACCESSORIES All rotors are autoclavable and customized.

No.	Item	Capacity	Max.speed	Max.RCF	Note
NO.1	Fixed Angle Rotor	24×1.5ml	22000r/min	53028xg	PP/PC tube
NO.2	Fixed Angle Rotor	16×10ml	21000r/min	52300xg	PP/PC tube
NO.3	Fixed Angle Rotor	12×15ml	18000r/min	36220xg	PP/PC tube
NO.4	Fixed Angle Rotor	6×50ml	20000r/min	43000xg	PP/PC tube
NO.5	Fixed Angle Rotor	6×85ml	15000r/min	25700xg	PP/PC tube
NO.6	Fixed Angle Rotor	4×250ml	14000r/min	30200xg	PP/PC tube
NO.7	Fixed Angle Rotor	6×250ml	12000r/min	22500xg	PP/PC tube
NO.8	Fixed Angle Rotor	8×100ml	14000r/min	26952xg	PP/PC tube
NO.9	Fixed Angle Rotor	6×500ml	10000r/min	17800xg	PP/PC tube
NO.10	Fixed Angle Rotor	4×1000ml	8000r/min	12000xg	PP/PC tube
NO.11	Swing Rotor	4×750ml	5000r/min	5600xg	PP/PC tube

Packing & Delivery
Company Profile MKE is a manufacturer of centrifuges for laboratory, medical treatment, blood bank, life sciences, research, biotechnology, pharmaceutical, food safety, environment analysis, animal husbandry, and other sectors.
Based in Changsha, China, the factory is operating under ISO 90001 and ISO 13485, and has passed SGS and Intertek factory inspection. All products have got CE certification and approved as Class II medical devices (IVD).
Our core team members boast over 10 years of expertise in the laboratory equipment industry, and they are committed to delivering professional solutions and high quality centrifuges to our customers.
FAQ Q: How long is the production lead time?
A: Within 7-15 workdays after receiving deposit.
Q: What's your warranty?
All MKE products have ONE year warranty, five-year motor warranty. We won't charge clients any money for repairing the machine during one-year warranty time,the freight is also on us.
Q: How about the sample of MKE Centrifuge?
We could send you the samples but the freightand the sample are charged.
Q: Which kinds of Certificate would you have?
ISO9001, ISO13485, CE
Q: Do you offer centrifuges with voltage and plug options suitable for my country/region?
A: Yes, we provide centrifuges with various voltage and plug options to meet different country/region requirements. Please let us know your specific needs, and we will ensure compatibility.
Q: Are there customized options available for specific applications?
A: Absolutely! We offer customization options to meet specific application needs. Let us know your requirements, and we will tailor the centrifuge accordingly.
