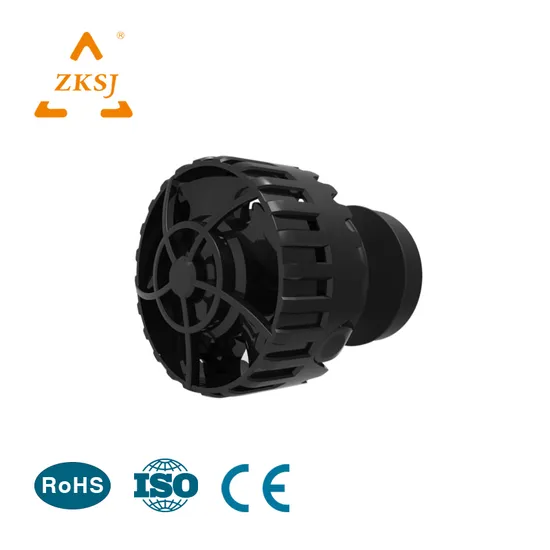

DC24V Wavemaker Powerhead Aquarium Circulation Pump

Product Description

Main Features 1.Real Marine Environment
This feature will be much more conducive to the survival of the marine organism.
2.Flexible and Easy to use
Two kinds of outlets, Easy to be installed. Digital control, Safety low operation voltage.
3.Small but Strong
Small but strong, Super quiet. Low-wattage, energy-saving for your system.
Selection Guide

Model	ECO SLIM 6000	ECO SLIM 10000	ECO SLIM 20000	ECO SLIM 30000
Flow	6000L/H	10000L/H	20000L/H	30000L/H
Tank	<0.6M	<0.8M	0.8-1.2M	1.2M-2M
Max Power	9W	20W	40W	70W
Min Power	3W	6W	6W	10W
Voltage	DC12V	DC24V	DC24V	DC24V
Size	48*48*49MM	61*61*65MM	73*73*73MM	102*102*94MM
Tank Thickness	12MM	15MM	20MM	20MM

Five Protection Function Dry run protection
If pump works in water shortage status,the pump starts working, and then stop. The pump will repeat this process automatically, to make sure it will work properly once resumes in enough water.This dry run protection function can avoid pump burned in the water shortage status. Stuck protectionIf the pump is stuck because it is not cleaned periodically. There is a "ERR" warning signal. And the pump will restart for 5 times, which can eliminate tiny impurities. After restarting 5 times, we can clearly know that the pump must be stopped for cleaning. Over voltage protection
When there is something wrong with adapter, the voltage becomes higher. The controller starts protection status, the display shows "ERR" warnings. This can avoid controller burned. Low voltage protection
When the consumption power is low, the displays shows "ERR" warning. This can avoid insufficient flow rate. Overloading protection
When the pipe is blocked, or too many impurities in pump body, the pump will be over loaded. The pump will send out the waring signal and trigger protection function. It will be continuously started working to avoid being burned.
