Small High Power DC Relay Base

Product Description

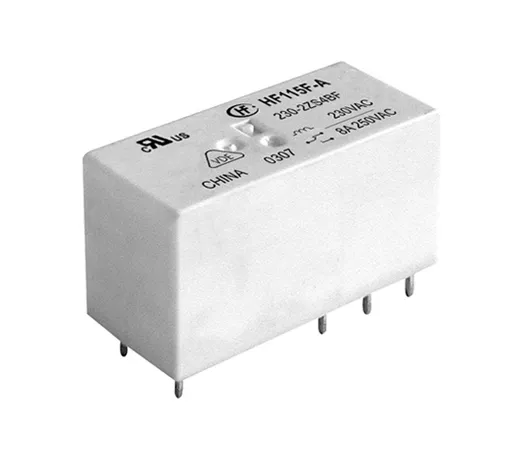

Type	HF115F
Coil voltage form	DC
Coil voltage	60, 12, 18, 5, 48, 24, 6, 110, 9
Contact arrangement	1 Form C, 2 Form A, 1 Form B, 1 Form A, 2 Form B, 2 Form C
Contact version	Single contact
Terminal type	PCB
Mounting	PCB-THT
Construction	Plastic sealed, Flux proofed
Terminals	5.0mm 2 pole 8A, 5.0mm 1 pole 16A, 5.0mm 1 pole 12A, 3.5mm 1 pole 12A
Coil power	standard form
Sort	Standard
Contact capacity	AgSnO2, AgCdO, AgNi
Insulation standard	Class B, Class F
Contact plating	Without plating, Au plated
Packing method	Tube packing or tray packing
Rated voltage(V)	250V.a.c
Coil power	Approx 0.4
Dielectric strength (between coil & contacts) (VAC 1min)	5000VAC 1min
Operate time(ms)	≤15
Release time(ms)	≤8
Coil resistance(Ω)	005:62×(1±10%)Ω 006:90×(1±10%)Ω 009:202×(1±10%)Ω 012:360×(1±10%)Ω 018:810×(1±10%)Ω 024:1440×(1±10%)Ω 048:5760×(1±15%)Ω 060:7500×(1±15%)Ω 110:25200×(1±15%)Ω
Creepage Distance(mm)	10
Electrical Distance(mm)	10
Insulation resistance(MΩ)	1000
Max. switching Current(AC)	1H:12A/16A 1Z:12A/16A 1D:12A/16A 2H:8A 2Z:8A 2D:8A
Max. switching voltage(VAC)	440VAC
Max. switching voltage(VDC)	300VDC
Ambient temperature (max)(ºC)	-40
Ambient temperature (min)(ºC)	85
Mechanical endurance min	10000000
Electrial eddurance min	100000(See approval reports for more details)
IEC60335-1	accord with
Explosion-proof certification	UL,VDE,TUV,IECEx
Product Description	Clapper Type Electromagnetic Relay
Application	appliances,intelligent home,Thermostat,etc
Weight(g)	Aporox. 13.5
Volume(mm³)	29.0×12.7×15.7
Product approval	VDE,UL,CQC
File No.	VDE 116934,UL E134517,CQC CQC17002168381

Product Description
Multi Contact Relay Introducing the Multi Contact Relay by NINGBO KAIFENG HIGHLED INTELLIGENT TECHNOLOGY CO.,LTD. This relay is designed to meet the reading habits of English-speaking natives, offering a range of features and benefits that make it a reliable and efficient choice for various applications.
Features: Multi contact arrangements: 2NO+2NC, 3NO+1NC Forcibly guided contacts according to EN50205 6A switching capability Low input power: 360mW High insulation capability: 10kV surge voltage between input and output UL insulation system: Class F available Environmental friendly product (RoHS compliant) Outline Dimensions: (40.0 x 13.0 x 24.0) mm With its multi contact arrangements, this relay provides flexibility and versatility in various electrical circuits. The forcibly guided contacts ensure reliable and safe operation, meeting the standards set by EN50205. With a switching capability of 6A, it can handle high electrical loads with ease.
Featuring low input power of only 360mW, this relay offers energy efficiency and helps reduce power consumption. The high insulation capability, with a surge voltage of 10kV between input and output, ensures optimal safety and protection against electrical surges.
Our Multi Contact Relay is designed with an UL insulation system, with Class F available, providing added reliability and durability. Additionally, it is an environmentally friendly product, compliant with RoHS regulations.
With its compact outline dimensions of (40.0 x 13.0 x 24.0) mm, this relay can easily fit into various applications without occupying excessive space.
Choose the Multi Contact Relay by NINGBO KAIFENG HIGHLED INTELLIGENT TECHNOLOGY CO.,LTD for a reliable and efficient solution to your electrical circuit needs.
