CNC Six-Sided Drilling Woodworking Boring Lathe for Furniture 3D Cutting and 3 Axis Engraving and Carving Machine
| US$19,500.00-22,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-S6B
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Color
Green or Blue
Controller
DSP Controller
Rail
Taiwan Rail
Motor
Stepper Motor
Rack
Germany Racks
Reducer
Taiwan
Table
T-Slot Vacuum Table
Name
CNC Milling and Carving Machine
Transport Package
Steel Panel or Plywood Box
Specification
220-2800mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
4370.00cm * 2260.00cm * 2300.00cm
Package Gross Weight
3500.000kg
Product Description
Six-sided Drilling MachineParameter
| Model | DLM-S6B |
| Panel length | 220-2800mm |
| Panel width | 50-1200mm |
| Panel thickness | 12-55mm |
| Max. Traveling speed | 110/110/75/30m/min |
| Spindle power | 9KW |
| Max. rotating speed | 18000rpm |
| Upper vertical drill | 9 |
| Upper horizontal drill | X: 2×2, Y: 2×2 |
| Lower vertical drill | 9 |
| Rotating speed | 4000rpm |
| Dust collector | Upper: Ø150mm Lower:Ø120mm |
| Total power | 19.4KW |
| Dimensions | 5900×2640×2100mm |
| Net weight | 3500kg |

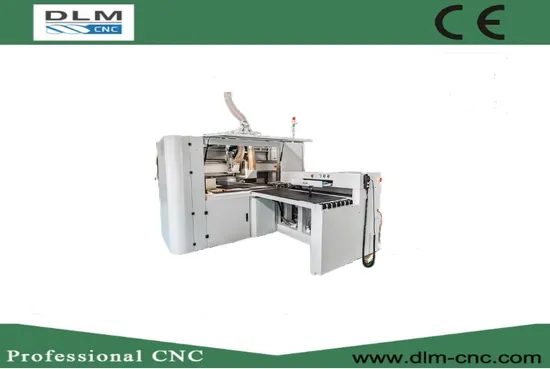

Machine Photos
Feature
* The six-sided CNC drilling center is especially suitable for custom home furnishing enterprises. It can complete the six-sided drilling of the workpiece and the groove on the front and back sides.
* The largest workpiece is 1220mm*2800mm
* The X axis adopts a long guide rail to ensure maximum processing efficiency, and the double clamp and the automatic side abutment device ensure the stability of the workpiece during the movement.
* The feeding workbench is filled with pneumatic floating beads to effectively protect the workpiece from the being damaged during the sliding process.
* The open docking interface is compatible with xml, mpr and other formats, seamlessly interface with the design and disassembly software, without programming, scanning barcodes can be processed.
Spare parts as options:
Package: steel panel
