China Suppier Hang Lever Type Rubber Sheet Cooling Machine With CE&ISO

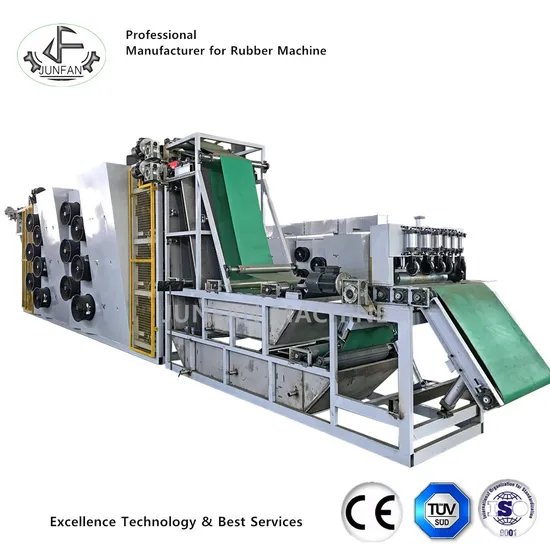

Auto Swing Rubber Sheet Batch off Cooler Machine
All our machines can be customized according to your requirements.
Application
Rubber batch-off machine is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder. It is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking.
>> Features
1. There are two structures types: Overhead and floor-standing types.
2. The clients can choose high or low disposition according to the practical requirements.
3. The high disposition batch-off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio (< =100mm);
4. There are three working positions for auto entering and outputting of material tray.
5. Auto rubber collecting device; Auto cutter device; It has high automatization and can realize unattended operation.
>>MAIN TECHNICAL SPECIFICATION

Model	XPG-600	XPG-800	XPG-900
Max. rubber sheet width	600mm	800mm	900mm
The thickness of the rubber sheet	4~10mm	4~10mm	6~12mm
Linear speed of taking-in conveyor	3~24m/min	3~35m/min	4~40m/min
Linear speed of sheet hanging bar	1-1.3m/min	1-1.3m/min	1-1.3m/min
Hanging height of the sheet hanging bar	1000-1500m	1000-1500m	1000-1500m
Number of cooling fans	12	20~32	32~34
Power	16KW	25~34KW	250KW
Overall Dimension(mm)	14250X3300X3405	16800X3400X3520	6000X2850X4450

Description of spare part
1. Take in device:
Used to take pressure in film, according to cylinder controlled by fluctuation, operation convenience. Taking in speed can be controlled by manual, it can be ascension. Take device adopts conveyor, the transmission system adopts frequency governor to control.
2. Soak device:
Equipped with triplet, manual rotary valve and pressure cylinder, adjust pressed roll according to cylinder control through the manual rotary valve, in order to Make discontinuous film compressed together and the film continuous a slice.
3. Leaching plasma device:
Function: Take over the film conveying equipment undertakes immersing, and carry on isolation agent. Equipped with cooling water pipe, through the cooling water source, continuous cooling liquid isolation, in order to control the temperature.
4. Take up device:
This device through the conveyor belt with isolation liquid film will be conveyed to the air cooling section gripping.
5. Wind cooling device:
Constitute: It is made of frame, cooling fans, hook rail and hang lever conveyor. Cooling fan selection adopts 20 axial fan, satisfy the requirements of film cooling; Hang lever are installed on the taper pin, film in hang lever.
6. Conveying laminated device:
Will the film into laminated measures, continuous fold in film seat.
7. Air control part:
Take-in control, each cylinder pressure and in the action, control system adopts reliable performance with high quality products.
8. Electrical control system:
(1) All the wires controlled by PLC, it easy for operation, reliable quality.
(2) The speed of production line can be through the inverter adjustment, make the film cooling line speed and host match.
(3) Fan control by the group control each motor are over-current protection circuit breaker, when a fault fan produced when the output signal of the fan, fault in all units and stop hair drier, just deal with a fault can be fan.
Multi-Layer Type Rubber Sheet Cooling Machine
Hang Lever Type Rubber Sheet Cooling Machine
Annular Type Batch-Off Cooler
