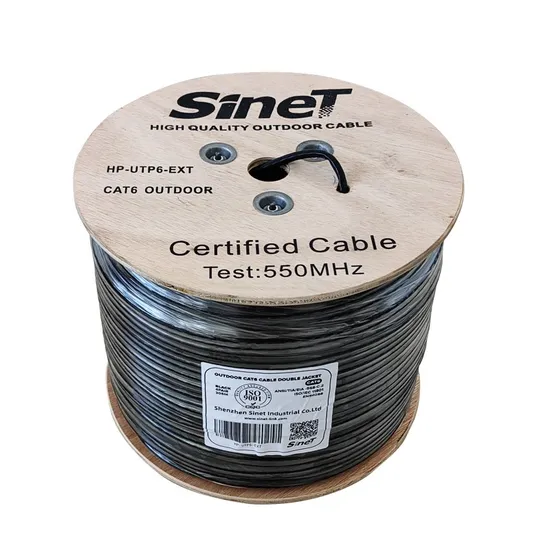

Outdoor CAT6 Ethernet Cable - Premium Quality, Solid Bare Copper, 305m/Roll
| US$15.59-66.90 | 100 Boxes (MOQ) |
Basic Info.
Model NO.
SN-EXT-UTP6
Cover Material
PE
Type
Cat 6
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC, VDE, ETL
Model
Sn-Ext-UTP6
Brand
Sinet/OEM
Color
Black
AWG
23
Od
7.0mm
Number of Conductors
8
Jacket Material
PVC+PE Double Sheath
Shiled
UTP/FTP/SFTP Optional
Test Pass
Yes
Model No.
Sn-Ext-UTP6
Length
100m/305m/500m Optional
Printing Words
Optional
Insulation Material
New HDPE
Insulation Od
1.05mm
Flame Level
Cmg/Cmr/CMP
Conductor Diameter
0.57mm
Rated Voltage
30V
Transport Package
305m/Wooden Drum, 2 Rolls/Brown Carton
Specification
4 Pairs 23AWG Solid Bare Copper
Trademark
SINET
Origin
Guangdong, China
HS Code
8544491100
Production Capacity
1000000 Boxes/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
10.000kg
Product Description
Product Description SINET focus on OEM cable manufacturing more than 20+ years, committed to continuous production process and constantly meet customers' cabling needs.
Based on the needs of different OEM customers, we have developed four series of Networks cables.
1, E Series(Economic), Meet most cabling requirements, choose CCA conductor, working distance 100-120M for Networking Cabling. support 10-100Mbps, Good performance on CCTV Camera
2, B Series(Basic performance), Meet gigabit cabling standards,Choose Pure Copper Conductor, working distance more than 200M for Networking Cabling, support 10-100-1000Mbps, Better performance on CCTV Camera
3, HE Series( High quality Economic), Choose High quality CCA, and better HD-PE material import from America 3364, Korea 8380, Compared with B and E series, HE series has improved the material and production process, added two processes of untwisting and total Twisting, which Improved signal attenuation and Crosstalk, and improved performance
4, HP Series(Highest performance), Compare with HE series,Highest performance cable all choose Pure Copper, and Imported insulation , Jacket materials. This is for customers who have very high requirements for cabling, Fully satisfied Gigabit and 10-Gigabit cabling requirements.
| Model | E-UTP6-EXT-D | B-UTP6-EXT-D | HE-UTP6-EXT-D,HE-UTP6H-EXT-D | HP-UTP6-EXT-D |
| Quality series | Economical | Basic | High quality Economical | High Quality Performance |
| Flu ke Pass | Not | Not | Yes | Yes |
| Shield Type | UTP, Unshielded | |||
| Conductor | CCA | Bare Copper | CCA,HCCA | Bare Copper |
| Copper Content | 25% | 100% | 30%,50%,60%,80% | 100% |
| Conductor size | 23AWG ( Customized) | |||
| Conductor resistance | 23Ω/100M | 7Ω/100M | CCA 16Ω/100M / HCCA 11Ω/100M | 7Ω/100M |
| Network working distance | ≤100M | ≥200M | ≤120M, ≤180M | ≥200M |
| IP camera working distance | ≤80M | ≤150M | ≤110M, ≤160M | ≥160M |
| OD | 7.0±0.02mm | |||
| Packing | 100M ,305M/Pull Box,500M/wooden drum | |||
| Color | White,Blue, Grey,Black,Orange,etc. Optional | |||
