High Performance Hanfa Photovoltaic Drill Machine with 10-26m³/Min Online Support and Field Maintenance - Model Hfpv-600

Product Description

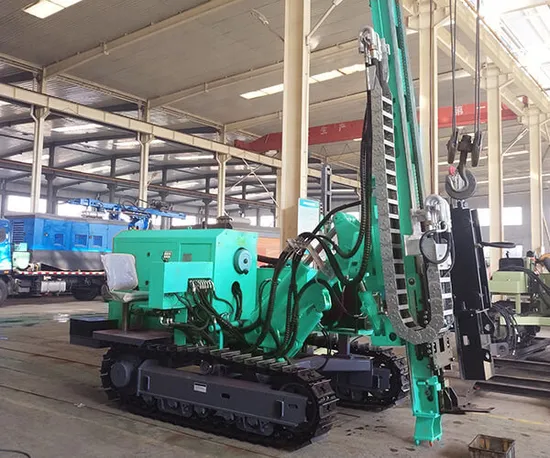

Product Description HFPV-600 hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection. The drilling machine structure is compact, while the mast has adjustable compensation function.
Application HFPV-600 drilling rig has reliable performance, high efficiency, suitable for operating conditions. It also reduce costs and improve the efficiency. The drilling rig is mainly used for piling anchor, water wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
Product Parameters

Bore diameter(hammer)	90-400mm	Bore depth	20-120m
Air consumption	10-26m³/min	Air pressure	0.7-1.6Mpa (medium)
			1.6-2.46Mpa (high)
Pipe diameter	76mm/89mm/102mm	For rock	F=6-20
Bore diameter(screw)	Max 400mm	Bore depth	0-30m
Screw pipe diameter	130-400mm	Once promotion	3200mm
Skid pitch	120º	Swinging angle of drilling boom	Left and right total 50º
Swinging angle of skid	Left and right total 40º	Rotation speed	0-110r/min
Host power	84Kw	Climb ability	35º
Dimension(L*W*H)	5300*1970*2620mm	Weight	5800kg

Company Profile
FAQ 1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
