Chinese Cheap Price High Quality Th504 Tractor with Cabin (50HP, 4WD)
Basic Info.
Model NO.
TH504
Type
Wheel Tractor
Usage
Farm Tractor
Certification
ISO, CE
Drive Wheel
4WD
Emission Standard
Euro IV
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Medium
Color
Red
Condition
New
Delivery Time
7 Days.
Pto
540/1000 R/Min
Transport Package
Iron Frame
Specification
CE, ISO
Trademark
Taihong
Origin
China
HS Code
87019011
Production Capacity
20000 PCS Per Year
Product Description

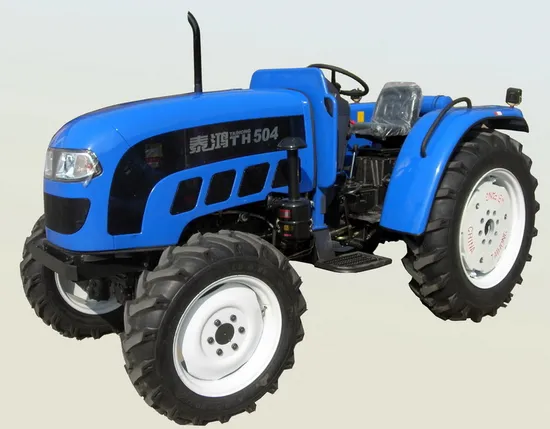

TH504 tractor with cabin (50hp,4wd), power steering.| Model | TH504 |
| Type | 4 X 4 Wheeled Type |
| General Specifications | |
| Driving mode | 4WD |
| Overall Dimensions (mm) W X D X H | 3600X1620X2120 |
| Tractor Dry Mass (kg) | 2300 |
| Rated Tractive Force (N) | 13000 |
| Max. tractive power (kw) | ≥27.5 |
| Wheel Base (mm) | 1960 |
| Front Wheel Tread (mm) | 1280-1300 Adjustable |
| Rear Wheel Tread (mm) | 1300-1500 Adjustable |
| Front Wheel Tire | 8.30-20 |
| Rear Wheel Tire | 12.4-28 |
| Min. Turning Radius (m) | |
| With oneside braking | 4.0±0.2 |
| No braking | 4.6±0.2 |
| Min. Ground Clearance (mm) | 396 |
| Transmission Box & Steering System | |
| Transmission Box | Spur gear, plane compound |
| Gear Shifts | (4+1)X2 |
| Theoretical Speed (km/h) | 1.96-27.21 |
| Clutch | single stage, single plate, dry friction, constant contact |
| Steering System | power steering |
| Working Devices | |
| Hydraulic System | half-seperated |
| Lifter Tillage Depth Control Method | Draft and Position Control |
| Max. Lifting Capacity (N) | ≥8280 |
| Safety Valve Pressure (Mpa) | |
| Three Point Hitch System | I35, Post Positioned,Category |
| PTO Type | Post Positioned, Non-independent |
| Max. PTO Power (kw) | 33 |
| PTO Rev. (rpm) | 540/720, 540/1000 or 720/1000 |
| Engine | |
| Type | Vertical type, four-cylinder diesel engine |
| Model | JD4100 |
| Bore X Stroke (mm) | 100X105 |
| Rated Power (kw) | 36.8 |
| Rated Revolution (rpm) | 2400 |
| Max. Torque (N.m) | |
| Rev. at Max torque (rpm) | |
| Lubricating Method | Pressure splash lubrication |
| Cooling Method | Forced Water Circulation |
| Fuel consumption (g/kw.h) | ≤243 |
| Engine Oil Consumption (g/kw.h) | ≤2.0 |
Color: red, blue, green, yellow, etc.
Delivery time: 10 days after confirming order finally.
