Customized 1200W 808nm Micro Channel Vertical Laser Diode Stack with 12bars for Alma Handle Repair

Product Description

Product Description
Item Name
Alma 1200W 808nm Micro Channel Vertical Laser Diode Stack with 12Bars We provide Vertical Stack Diode Laser Repair service for Alma Soprano Ice, Soprano XL,Soprano Platinium. Sometimes the micro channel has a lot of problem, we can help you to repair it, our laser bars are imported from German, we can guarantee good cooling and high power.
Feature: 100watt per bar,totally 1200watt Customized geometries and housings available Low pressure and water flow requirements Small bar-to-bar pitch for increased brightness Application: Hair Removal Handle Repairing Repairing procedure >Choice A: Send the old broken hand piece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new hand piece back to you.
>Choice B: if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.
>Choice C: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hand piece.

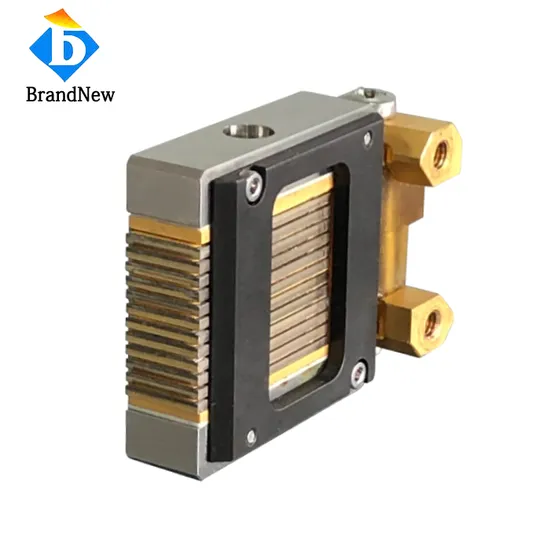

Product Photo
Product Specification

Optical	Typical Value
Center Wavelength λ	808nm
Wavelength Tolerance	±10nm
Output Power	1200W
Fast Axis Divergence(FWHM)	38Deg
Slow Axis Divergence(FWHM)	12Deg
Pulse Width	100ms
Duty Cycle	20%
Electrical
Threshold Current Lth	20A
Operating Current Lop	95A
Operating Voltage Vop	20V
Thermal
Operating Temperature	20~30ºC
Storage Temperature	0-55ºC
Coolant	Distilled Water
Flow Rate/Bar	5L/min
Max Inlet Pressure	350~500KPa
Water Temperature(No Condensation)	23~27ºC
Filtered Water Particles	<20um

Delivery & Packing
Packing: One set in a case(According to your request) Delivery: Normally 1-2 Weeks FedEx,DHL Express, UPS, TNT Payment Term: T/T and Western Union, For your Choice Return Policy: Buyer Pay the Shipping Cost.
Why Choose Us
Why BrandNew Technology to be your partner? (1). Higher reliability, performance, long lifetime, all kinds of models and cost-effective.
(2). Offer customized products, simplify your development processing, improve the stability of whole device and accelerate marketing.
(3). Volume manufacturing, many models in stocking
(4). Provide wavelength range from 450nm to 1550nm and a wide range of output power from mW to kW
(5).Professional technology support,24hours timely response.
(6). Door to door delivery with official express DHLCertification
Company Profile
Founded in 2011, Professional Laser diode supplier,manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including laser chip, fiber coupled laser diode, single bar and high power diode laser array.Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNews strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
Our range of products gives this feeling to our customers who rapidly understand that our solutions help them save time in their RD photonic system and integration work.
Core Competency
Diode Packaging Beam Shaping
Reliability Testing Efficient Cooling
FAQ
Q1: What payment methods do you support?
A: T/T and Western Union, For your Choice
Q2: How long can I receive the package?
A: Normally 1-2 Weeks FedEx, DHL Express, UPS, TNT.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 20 months warranty to this diode laser stack.
Q4: How about sample?
A: You can get a sample, but our sample is not free. Q5: Are you trading company or manufacturer?
A: We are manufacturer with more than 11 years of experience, and also provide the technical solution to all customers.
Q6: Can you guarantee your quality?
A: Of course, we are one of top reputed manufacturers in China. Quality for us is the most important thing, we put high value on our reputation. Best quality is our principle all the time.
Q7: Is it a reliable company?
A: BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and also Zhejiang University,Today, over 60 technicians and 2 scientists,20 technicians are with PHD degree.BrandNew 's strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
