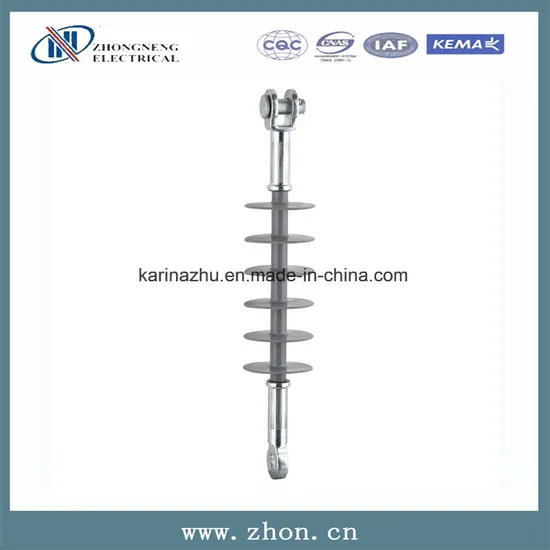

High Voltage Suspension Composite Polymer Long Rod Insulator
Basic Info.
Model NO.
FXBW-24/100
Structure
Suspension Insulator
Type
B Type Insulator
Usage
High Voltage Power Transmission
Connection Method
Trough Type
Size of Bearing Capacity
100KN
Certification
ISO9001, CNAS, Cnal
Color
Grey
Brand
Zhon
Transport Package
Carton or Plywood Case
Specification
24KV
Trademark
ZHON
Origin
China
HS Code
8546900000
Production Capacity
10, 000PCS/Month
Packaging & Delivery
Package Size
38.00cm * 38.00cm * 39.00cm
Package Gross Weight
1.200kg
Product Description
24KV Compsoite Suspension long rod InsulatorCharacteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking
KEMA,CNAS,CNAL, ISO9001 certificates
| Product Model | Rated voltage (kV) | Rated mechanical bending load (kN) | Structure height (mm) | Min. arcing distance (mm) | Min. nominal creepage distance (mm) | Uimp wts (peak) (kV) | Uw. 1min wts (peak) (kV) |
| FXBW-24/100 | 24 | 100 | 450 | 235 | 643 | 150 | 65 |
