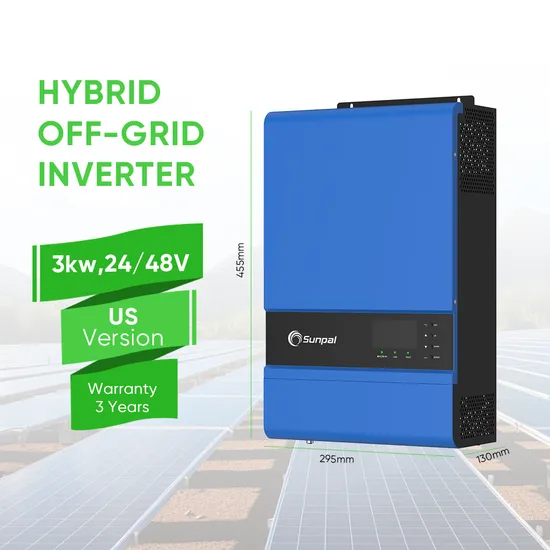

Sunpal Inversor De Corriente Hibrido 3Kw 3000W 24V Mppt Solar Hybrid Inverter
Basic Info.
Model NO.
Sunpal-MHP 3000LV
Nature of Source Flow
Active Inverter
Phase
Split Phase
Output Power
3KW
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Sunpal
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Input Voltage
24-48VDC
Output Voltage
120V/240Vac
Output Current
25-80A
Output Frequency
50/60Hz
Protection
Overload
Application
Solar Power System Home
Battery type
Lead Acid \ Lithium \ Gel
Communication
RS485/WiFi (optional)/GPRS (optional)/DRM(Australi
Output waveform
Pure Sine Wave Output
MPPT Efficiency
98-99%
MPPT voltage range
60-140Vdc
Transport Package
Carton with Pallet
Specification
130*295*455mm
Trademark
Sunpal
Origin
China
HS Code
8504403090
Production Capacity
500PCS/Day
Packaging & Delivery
Package Size
13.00cm * 30.00cm * 50.00cm
Package Gross Weight
15.000kg
Product Description
Product DescriptionFeatures: split Phase 120V/240V; Rated power 3KW, power factor 1;
Built-in MPPT solar charge controller;
High frequency inverter with compact design;
Pure sine wave AC output;
Battery Voltage 24V/48V Ones;
Parallel operation up to 6 units;
WiFi/GPRS remote monitoring (optional);
RS485 communcation for BMS (optional).
Product Parameters
| Model | Sunpal-MHP 3000LV-24 3000VA / 3000W | Sunpal-MHP 3000LV-48 3000VA / 3000W |
| Rated Power | ||
| System DC voltage | 24VDC | 48VDC |
| Splite phase operation | Yes, need at lest 2 units in parallel | Yes, need at lest 2 units in parallel |
| Parallel operation | Up to 6 units | Up to 6 units |
| Monitoring Option | WiFi or GPRS | WiFi or GPRS |
| Output | ||
| AC Voltage | 110/120VAC | 110/120VAC |
| Peak Efficiency | 93% | 93% |
| Transfer Time | 10ms (For Personal Computers); 20ms(For Home Appliances) | |
| Waveform | Pure Sine Wave | Pure Sine Wave |
| Solar Charger & AC Charger | ||
| Max. PV Array Open Circuit Voltage | 145V | 145V |
| Max. PV Array Power | 2000W | 4500W |
| Operating Voltage MPPT Range | 60~115VDC | 60~115VDC |
| Max. Solar Charge Current | 80A | 80A |
| AC Input Voltage Range | 65~140VAC | 65~140VAC |
| Frequency Range | 50Hz/60Hz | 50Hz/60Hz |
| Max. AC Charge Current | 60A | 40A |
| Max. Charge Current (PV+AC) | 140A | 120A |
| Physical | ||
| Demension | 455×295×130mm | 455×295×130mm |
| Weight | 11.5kg | 11.5kg |
| Communication Interface | USB/RS485 | USB/RS485 |
| Environment | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C~50°C | 0°C~50°C |
| Storage Temperature | -15°C~60°C | -15°C~60°C |
