Automatic Winding PLC Control Pet Pet Belt Manufacturing Equipment 300-350kg/H

Product Description

https://membercenter.made-in-china.com/productmanage.do?xcase=view&prodId=LZQTumqYseaX&queryGroupId=&queryCatCode=&pageSize=30&queryState=-1&prodUpgradeActivity= Product Description

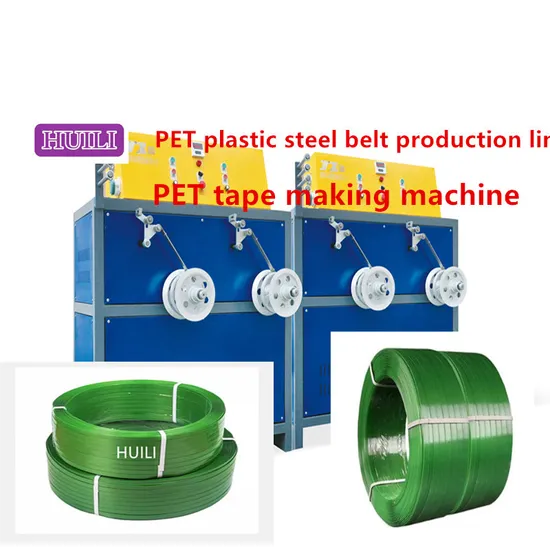

Features of PET strapping production line:
1. Good tensile strength: PET strapping production line has the tensile strength of steel strap, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation: Although PET strapping tape is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and keep the expansion and contraction amount unchanged after packaging.
3. Strong temperature resistance: Experiments have proved that the melting point of PET strapping tape is about 260ºC, and it can be used for a long time in an environment of 120ºC without deformation, and has good stability.
PET packaging belt production line process flow
Loading →Mixing raw materials → Pre-drying raw materials → Vacuum dehumidification of raw materials →Melting and metering extrusion of raw materials →Cooling and forming of raw materials (with raw materials) →Preheating the oven → Primary stretching →Secondary stretching → Embossing → Oven tempering and shaping →Cooling →Finished product winding

Model	PET-2	PET-3	PET-4	PET-6	PET-8
Raw materials	Bottle flakes/crushed materials
Number of tapes	2	3	4	6	8
Width (mm)	9-32
Width (mm)	0.4-1.2
Maximum line speed(m/min)	>=150	>=150	>=150	>=150	>=150
PLC control system	PLC	PLC	PLC	PLC	PLC
Screw Model	90	100	125	150	180
Reducer model	200	250	280	315	350
Dryer tank	3000L	4000L	5000L	6000L	6000L
Dehumidifier	1000	1000	2000	3000	3500
Metering Pumps	100CC	100CC	100CC	100CC	100CC
Screen Changer	Single cylinder
Production capacity /24 H	5-6T	7-8T	10-12T	12-15T	18-20T

Detailed Photos
The extruder of the PET plastic steel belt production line adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
