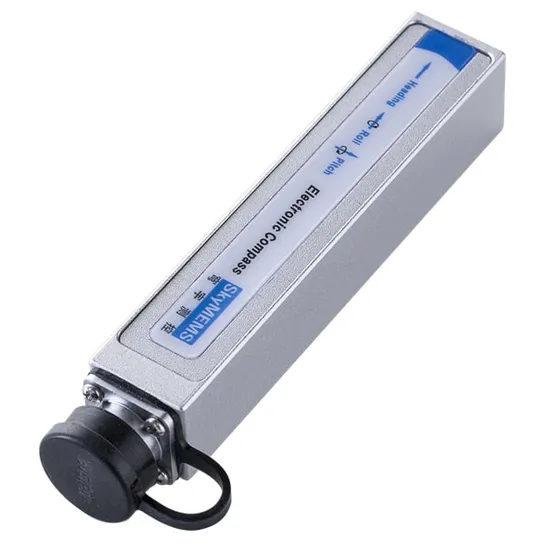

EC2000 High Performance IP67 Rugged Electronic Digital Magnetic Compass
Main Features
-Heading Accuracy: 0.3°RMS (25ºC, Tilt Angle<30º)
-TiltAccuracy:±0.1º(25ºC, Full Range)
-Hard/Soft Magnetic Compensation, Tilt Compensation
-Support User Calibration, IP67 Protection
-Wider Input Voltage: 5~24VDC
-Interface: RS232 (default)or RS485
-Wide Working Temperature: -40~+85ºC
-Small Size: L113*20*20mm
Brief Introduction
EC2000 electronic compass is a high-performance, low-power consumption, tilt-compensated 3Ddigital compass module, whichprovides heading, pitch, and roll outputs for navigation. Itintegrates 3-axis magneto-inductive sensors, 3-axis MEMS accelerometer and central processing unit to calculate the heading data in real time and compensate the heading when it has inclination angle. These solid-state sensors create a strapdown compass that is both rugged and reliable. Itadopts hard and soft magnetic calibration algorithm,uses patented calibration technology and provides high accuracy inclination signal, and it has perfect cross connect performance.
EC2000 enjoys high accuracy, high reliability, compact size, low power consumption, low cost, itis a perfect solution for Compassing & Navigation, Dead Reckoning Backup to GPS Systems, Marine Navigation, Antenna Positioning,Buoy, Robotics and Land Surveying. And it has been successfully widely used in these fields.
Technical Specifications

Parameters	Value	Comments
Heading
Range	0~360°
Accuracy	0.3° RMS	25°C, tilt angle<30°
	0.5° RMS	25°C, tilt angle<60°
	1° RMS	25°C, tilt angle<85°
Resolution	0.1°	Deg RMS
Tilt Angle
Range	roll: ±180º , pitch: ±85º
Accuracy (full range)	0.1°	25°C
Resolution	< 0.01°
Temperature Drift (-40~+85°C)	<0.5°	with temperature compensation
	<1°	without temperature compensation
Electronical performance
Input voltage	5~24VDC
Power consumption	<0.2W
Startup time	≤500ms
Environment condition
Working temperature	-40~+85°C
Protection level	IP67
Communication protocol
Interface	RS232 or RS485
Braud rate	2400~115200	settable
Maximum output speed	100Hz	ODM supported
Physical parameter
Dimensions (L x W x H)	113*20*20	mm
Weight	80	grams

Typical Applications
-antenna positioning
-buoy
-unmanned systems
-marine navigation fields
