ISO 150 200bar Gas Bottle 37mn Oxygen Tanks Tped TUV Ut 25e 1L/2L/3L/4L/5L/6.3L/6.7L/7L/8L Tanks
| US$8.00-155.00 | 100 pcs (MOQ) |
Basic Info.
Model NO.
WG89-1-200
Function
Heat Pressure Vessel
Application
Mixture
Material
Alloy
Pressure
Working Pressure: 150bar
Storage Medium
Gas
Pressure Level
Hydrostatic Test Pressure: 250bar
Condition
New
Production Cycle
15 to 30 Days
Processing Capacity
Annual Output of 800, 000
Production Standard
ISO9809-3 or ISO9809-1
Charging Medium
Oxygen, Nitrogen, Argon, Helium, Laughing Gas, Air
Color
Refer to Raul′s Color Card
Assembly Method
Gas Cylinder Body + Valve
Use Cylinders
Our Seamless Steel Cylinders Are Widely Used in in
Products Can Be Exported to Countries or
China, Southeast Asia, Middle East, Asia, Africa
Transport Package
Net Sleeve or Carton or Tray
Specification
1-80 litres
Trademark
HS
Origin
Made in China
HS Code
7311009000
Production Capacity
Annual Output of More Than 800, 000 Pieces
Product Description

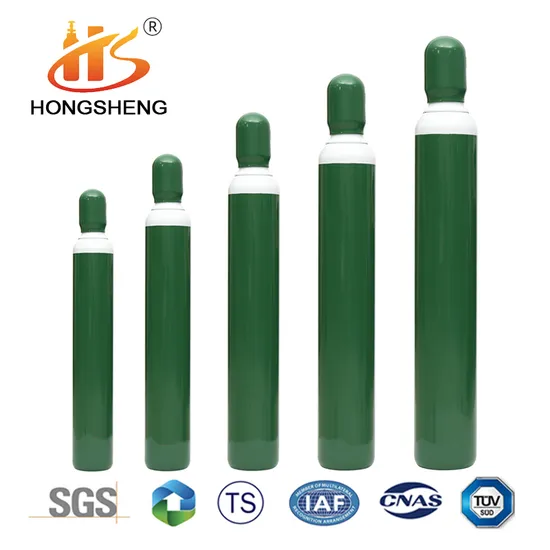

ISO 150 200bar Gas Bottle 37mn Oxygen tanks Tped TUV UT 25E 1L/2L/3L/4L/5L/6.3L/6.7L/7L/8L/10L/12L/13.4L/15L/20L/40L/47L/50L/60L/68L/70L/80L Medical Cylinders
Shandong Hongsheng Pressure Vessel Co., Ltd. is a professional global gas cylinder manufacturer registered in China.
Registered in Qihe County, Dezhou City, Shandong Province, China, the company has obtained the Chinese production cylinder B1 license and TUV, CE certification
Product Information:
| Name | parameter | Name | parameter |
| Volume | 0.8 litres to 80 litres | Place of origin | Made in China |
| Cylinder outer diameter | 89mm-267mm | Minimum design wall thickness | 2.4mm-6.2mm |
| Material | 37MN or 34CrMo4 | Cylinder body weight | 1.60kg-72.4kg |
| Production standards | ISO9809-1 or ISO9809-3 | Height of the cylinder body | 197mm-1520mm |
| Working pressure | 150BAR OR 200BAR | Maximum gas storage | 0.2m3-12m3 (200L-12000L) |
| Hydrostatic test pressure | 250BAR OR 300BAR | Cylinder mouth threads include | PZ19.2,PZ27.8,PZ39; 25E; 3/4-14 NGT, etc. |
| Aliases | Utrasonic non-destructive testing gas cylinders ,25E gas cylinders ,UT gas bottles ,25E gas bottles ,25E UT gas cylinders;Mix gas cylinder, 150bar Argon cylinder, Argon C02 bottle, Air gas Argon cylinder, Argon Mix bottle;Portable gas cylinders ,Big Air tank ,Large Oxygen tank ,Small Portable Air tank ,On board Air tank;Oxygen gas cylinders; TPED gas cylinder; 200 bar gas cylinder; Oxygen bomb; Gas cylinders;TPED Air cylinders;TPED Oxygen Cylinders,TPED Cylinders,TPD Tanks,TPD Carbon dioxide cylinders | ||
Shandong Hongsheng Pressure Vessel Co., Ltd. is willing to be your long-term partner and chief cylinder safety officer, and jointly escort your cylinder safety.
200bar Gas cylinder product parameter sheet
| Type | Outside Diameter (mm) | Water Capacity (L) | Bottle Height (mm) | Weight (kg) | Working pressure (Bar) | Design wall thickness (mm) | Material Grades |
| WG 89-0.8-200 | 89 | 0.8 | 197 | 1.60 | 200 | 2.0 | 34CrMo4 |
| WG 89-1.0-200 | 1 | 240 | 1.83 | ||||
| WG 89-1.2-200 | 1.2 | 275 | 2.07 | ||||
| WG 89-1.4-200 | 1.4 | 310 | 2.30 | ||||
| WG 89-2.0-200 | 2 | 419 | 3.00 | ||||
| WG 108-1.4-200 | 108 | 1.4 | 233 | 2.81 | 200 | 2.4 | 34CrMo4 |
| WG 108-1.8-200 | 1.8 | 284 | 3.34 | ||||
| WG 108-2.0-200 | 2 | 310 | 3.62 | ||||
| WG 108-3.0-200 | 3 | 440 | 4.96 | ||||
| WG 108-3.2-200 | 3.2 | 464 | 5.24 | ||||
| WG 108-3.5-200 | 3.5 | 503 | 5.64 | ||||
| WG 108-4.0-200 | 4 | 568 | 6.30 | ||||
| WG 108-4.6-200 | 4.6 | 645 | 7.11 | ||||
| WG 108-5.0-200 | 5 | 696 | 7.64 | ||||
| WG 140-3.4-200 | 140 | 3.4 | 324 | 5.30 | 200 | 3.1 | 34CrMo4 |
| WG 140-4.0-200 | 4 | 375 | 5.89 | ||||
| WG 140-5.0-200 | 5 | 447 | 6.96 | ||||
| WG 140-6.0-200 | 6 | 516 | 7.56 | ||||
| WG 140-6.3-200 | 6.3 | 540 | 7.88 | ||||
| WG 140-6.7-200 | 6.7 | 569 | 8.30 | ||||
| WG 140-7.0-200 | 7 | 591 | 8.63 | ||||
| WG 140-7.1-200 | 7.1 | 598 | 8.74 | ||||
| WG 140-8.0-200 | 8 | 665 | 9.68 | ||||
| WG 140-9.0-200 | 9 | 744 | 10.7 | ||||
| WG 140-9.1-200 | 9.1 | 751 | 10.9 | ||||
| WG 140-10.0-200 | 10 | 818 | 11.9 | ||||
| WG 140-11.0-200 | 11 | 892 | 12.9 | ||||
| WG 140-12.0-200 | 12 | 966 | 14.3 | ||||
| WG 140-13.4-200 | 13.4 | 1069 | 15.5 | ||||
| WG 140-14.0-200 | 14 | 1112 | 16.4 | ||||
| WG 140-15.0-200 | 15 | 1188 | 17.5 | ||||
| WG 159-8.0-200 | 159 | 8 | 548 | 9.11 | 200 | 3.5 | 34CrMo4 |
| WG 159-9.4-200 | 9.4 | 627 | 10.8 | ||||
| WG 159-10.0-200 | 10 | 660 | 10.9 | ||||
| WG 159-11.0-200 | 11 | 716 | 11.8 | ||||
| WG 159-12.0-200 | 12 | 780 | 13.1 | ||||
| WG 159-13.4-200 | 13.4 | 861 | 15.4 | ||||
| WG 159-15.0-200 | 15 | 932 | 16.8 | ||||
| WG 165-10.0-200 | 165 | 10 | 615 | 12.5 | 200 | 3.6 | 34CrMo4 |
| WG 165-12.0-200 | 12 | 725 | 14.4 | ||||
| WG 165-15.0-200 | 15 | 880 | 17.2 | ||||
| WG 180-8.0-200 | 180 | 8 | 467 | 13.5 | 200 | 3.9 | 34CrMo4 |
| WG 180-10.0-200 | 10 | 571 | 15.4 | ||||
| WG 180-13.4-200 | 13.4 | 721 | 18.6 | ||||
| WG 180-15.0-200 | 15 | 792 | 20.2 | ||||
| WG 180-18.0-200 | 18 | 924 | 23.1 | ||||
| WG 180-20.0-200 | 20 | 1012 | 24.8 | ||||
| ISO 232-40.0L-200 | 232 | 40.0 | 1167 | 43.0 | 200 | 6.0 | 34CrMo4 |
| ISO 232-46.7L-200 | 46.7 | 1345 | 48.9 | ||||
| ISO 232-47.0L-200 | 47 | 1351 | 49.0 | ||||
| ISO 232-50.0L-200 | 50.0 | 1450 | 57.7 | ||||
| ISO 267-60.0-150 | 267 | 60 | 1330 | 66.7 | 150 | 5.8 | 37MN |
| ISO 267-68.0-150 | 68 | 1490 | 73.9 | ||||
| ISO 267-70.0-150 | 70 | 1530 | 75.7 | ||||
| ISO 267-80.0-150 | 80 | 1730 | 84.7 |
