Africa Steel Structure Workshop/Warehouse Best Design Low Cost and High Quality

Product Description

PRODUCT DESCRIPTION Steel structure construction

No.	Type	Steel Structure
1	Material	Q235B/Q345B
2	Column and beam	Welded H section steel
3	Purlin	C/Z section
4	Roof and wall	EPS/glass wool/rock wool/PVC sandwich panel
5	Door and window	Sliding sandwich panel door or rolling metal door PVC/aluminum alloy window/plastic steel window
6	Local climate	1.wind speed 2.Snow load 3.Rain quantity 4.Earthquake grade If have
7	Crane parameter	If need crane beam,crane tons parameter and lift height are needed
8	Drawing	1.according to client's drawing 2.design as per client's demension and request
9	Package	Naked loaded in shipping container or as per requests
10	Loading	20GP.40HP.40GP.40OT

Kindly provide the following importance technical parameter for quotation please:
(1) Building size : length * width *height ;
(2) Wind speed (max speed);
(3) Snow load (kg/m2 in max situation);
(4) Earth quake grade (if have) ;
(5) Live load and dead load for roof and flooring(special for mutli-floors building);
(6) The requirements for window and door;
(7) Max height and weight for crane to lift;

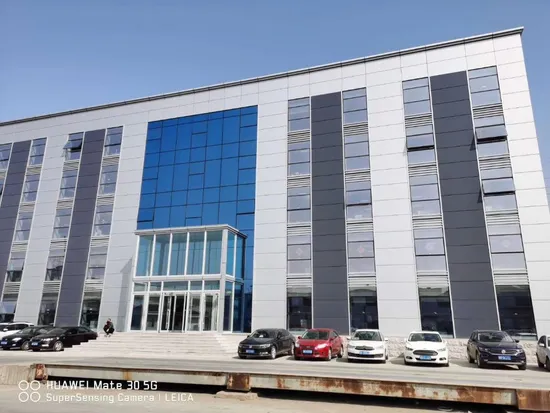

PROJECTS SHOW:
OURS SERVICES:
Our excellent design team will design the steel structure workshop warehouse for
you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
