Vacuum Type Corrugated Paper Making Single Facer For Carton Making Machine

Product Description

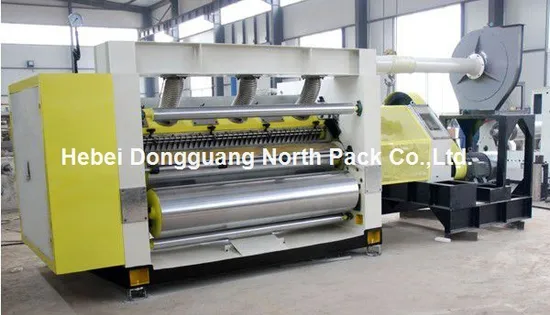

Vacuum Type Corrugated Paper Making Single Facer For Carton Making Machine
Structural Features:
-- Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan,with silencer.
-- Engine base and main machine wallplate: iron casting material, thickness of the wall plate, adopt independent speed changing box, and 3 sets universal joint transmission.
-- Diameter of main corrugated roll: ¢280mm, and are made of 48CrMo alloy steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding and hard chrome plated, the rigidity of surface is higher than HRC52.
-- Pressure roll diameter: ¢280mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 48CrMo alloy steel, hardening and tempering
-- Glue parts: pneumatic control glue supply and glue back, diameter of the applicator glue roll : ¢242mm, surface are treated by polished and chrome plated. Electric adjusting the glue quantity.
-- Press roll adopt ¢160 cylinder control adjut the gap with corrugated roll.
-- Pre-heater roll adopt seamless steel pipe, Diameter¢402mm, are all connected with rotary joint and metal soft pipe.

Technical parameter:

1	Working width	1600mm
2	Operation direction	left or right
3	Design speed	150m/min
4	Temperature scope	160-220 C
5	Pneumatic working pressure	0.4-0.9Mpa
6	Pressure	0.8-1.3Mpa
7	Flute profile	UV type or UVV type

Parameter of Main roll:

1	Diameter of corrugated roll	¢280mm
2	Diameter of pressure roller	¢280mm
3	Diameter of applicator glue roll	¢242mm
4	Diameter of preheater roll	¢402mm

Motor parameter:

1	Main driving motor	power	11kw
		Normal voltage	380V 50HZ
		Continues (S1) working system
2	Wind suction motor	Normal voltage	380V 50HZ
		Continues (S1) working system
3	Glue adjustment reduction box	power	80kw
		Normal voltage	380V 50HZ
		Short time (S2) working system
4	Glue adjusting gap motor	power	0.55KW
		Normal voltage	380V 50HZ
		Short time (S2) working system
5	Glue pump motor	power	0.55KW
		Normal voltage	380V 50HZ
		Continues (S1) working system

Main bought-in parts and raw material and origin

No.	Main parts name	Origin	Raw material
1	Wall plate and based wall plate	Local	HT200
2	Rotary joint and metal soft pipe	LUGUANQIU, Shangdong
3	Main driving motor	Hengshui
4	Bearing	HRB, ZWZ, LYC
5	The shaft with seat	HEBEI
6	High pressure fan	HEBEI
7	Cylinder	SHANDONG
8	Magnetic valve	ZHEJIANG
9	Drain valve	zhejiang	Stainless steel

Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
Our Services 1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our
professional machine making team and strict QC team, we will
also send you our manual and video, what you need to do is just
learn some basic thing such as machine maintenance.
