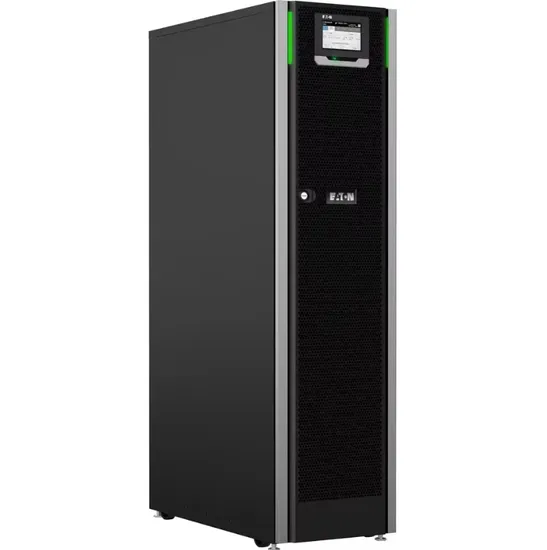

Eaton 93PS 8/10/15/20/30kVA 380V Rack/Tower Double Conversion Pure Sine Wave Three Phase Online UPS for Computers/Servers/Data Rooms/Hospitals Equipment
| US$5,075.00-13,550.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Eaton 93PS UPS
Protection
Short Circuit
Application
Industry
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Centralized Model
Brand
Eaton
Product Name
Eaton 93PS UPS
Power Level
8-40 Kw
Output Voltage
220/380 V; 230/400 V; 240/415 V
Input Voltage
220/380 V; 230/400 V; 240/415 V
Rated Frequency
50/60Hz
Input Power Factor
0.99
Double-Conversion Mode
up to 96 %
Eco Mode
up to 99 %
Trademark
Eaton
Origin
China
HS Code
8504402000
Production Capacity
1000
Product Description
Technical specifications| General | ||
| UPS output power rating | Eaton 91PS Eaton 93PS | 8-30kW 8-40kW |
| Efficiency in double conversion mode | 96% | |
| Efficiency in Energy Saver System (ESS) mode | 99% | |
| Paralleling capability | up to 4 units | |
| Audible noise | 10kW frame 15-40kW frame | <54 dBA in double conversion <60 dBA in double conversion |
| Altitude (max) | 1000m without derating(max 2000m) | |
| Input | ||
| Input wiring | Eaton 91PS(1:1) Eaton 91PS (3:1) & 93PS (3:3) | 1 phase+N+PE 3 phase+N+PE |
| Nominal voltage rating | Eaton 91PS (1:1) Eaton 91PS (3:1) & 93PS (3:3) | 220V;230V;240V;50/60 Hz 220/380 V;230/400 V;240/415 V;50/60 Hz |
| Input frequency range | 40 to 72 Hz | |
| Input power factor | 0.99 | |
| Input iTHD | 8-10kW 15-40kW | <5% <4% |
| Soft start capability | Yes | |
| Internal backfeed protection | Yes | |
| Output | ||
| Output wiring | Eaton 91PS(1:1 &3:1) Eaton 93PS (3:3) | 1 phase+N+ PE 3 phases+N+PE |
| Nominal voltage rating | Eaton 91PS(1:1 &3:1) Eaton 93PS (3:3) | 220 V;230 V;240 V 50/60 Hz 220/380 V;230/400 V;240/415V |
| Load power factor range | 0.8 lagging-0.8 leading | |
| Battery | ||
| Battery type | VRLA | |
| Charging mode | Advanced Battery Management(ABM) or Float | |
| Temperature compensated charging | Option | |
| Battery quantity | Internal External | 32 blocks, 192 cells per battery string 28-40 blocks per string |
| Charge current limit | 10kW frame 15/20 kW frame 30/40 kW frame | Configurable, maximum 12.5A Configurable, maximum 18/25A Configurable, maximum 36/50A |
| Battery start capability | Yes | |
| Altermative backup power sources | Li-lon batteries Super capacitors Wet cell batteries NiCd batteries | |
| Options and accessories | ||
| Long life batteries | ||
| External battery cabinets and supercapacitor cabinets | ||
| External maintenance bypass switches | ||
| Battery breaker enclosures for rack batteries | ||
| Connectivity | ||
| Native relay inputs/outputs | 5 relay inputs and dedicated EPO I relay output More relay contacts available as option | |
| Software | Eaton Intelligent Power Manager Eaton Intelligent Power Protector | |
| Gigabit Network card (NETWORK-M2) | Web/SNMP Third party certified cybersecurity Up to 3 optional sensors(EMPDT1H1C2): Temperature, humidity and two status inputs | |
| Industrial Gateway card (IND GW-M2) | Web/SNMP/Modbus RTU and TCP Third party certified cybersecurity Up to 3 optional sensors(EMPDT 1H1C2): Temperature, humidity and two status inputs | |
| Power Xpert UPS Minislot card (PXGMSUPS) | Web/SNMP/Modbus RTU and TCP/BACnet IP Optional Sensor (EMP001): Temperature, humidity and two status inputs | |
| Industrial Relay-MS card (INDRELAY-MS) | 5 relay outputs/ 1 relay input | |
| Compliance with standards | ||
| Safety | IEC 62040-1; CB certified | |
| EMC | IEC 62040-2 | |
| Performance | IEC 62040-3 | |
| RoHS | EU directive 2011/65/EU | |
| WEEE | EU directive 2012/19/EU | |
