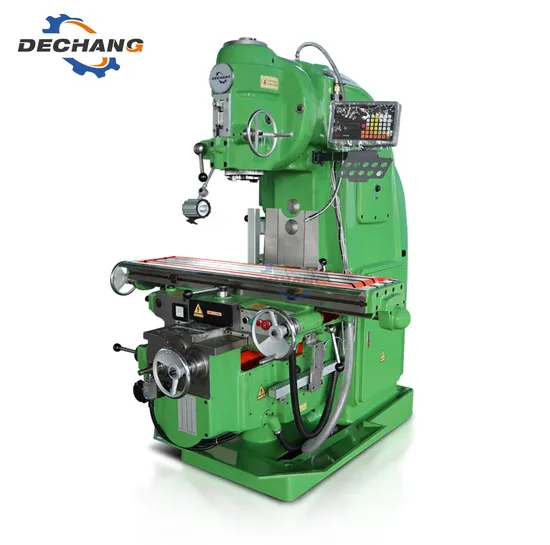

Manual Metal Vertical Milling Machine X5032 Universal Vertical Milling Machine

Product Description

Manual Metal Vertical Milling Machine X5032 Universal Vertical Milling Machine
Product Parameters
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:

Specifications	Units	X5032
Table size	mm	1320x325
T-type slot numbers / width /space	mm	3-18-70
Max. load of table	kg	500
Longitudinal travel (manual/auto)	mm	700/680
Transverse travel(manual/auto)	mm	255/240
Vertical travel (manual/auto)	mm	350/330
Cutting feed speed	mm/min	X.:23.5-1180 Y:23.5-1180 Z:8-394
Rapid feed speed	mm/min	X/Y:2300 Z:770
Spindle travel	mm	70
Distance between spindle nose and table surface	mm	60-410
Max. swivel angle of vertical milling head		±45°
Spindle speed step	(steps)	18
Spindle speed range	rpm	30-1500
Spindle motor power	KW	7.5
Overall dimensions	mm	2294x1770x1960
Machine weight	Kg	2800

Detailed Photos
