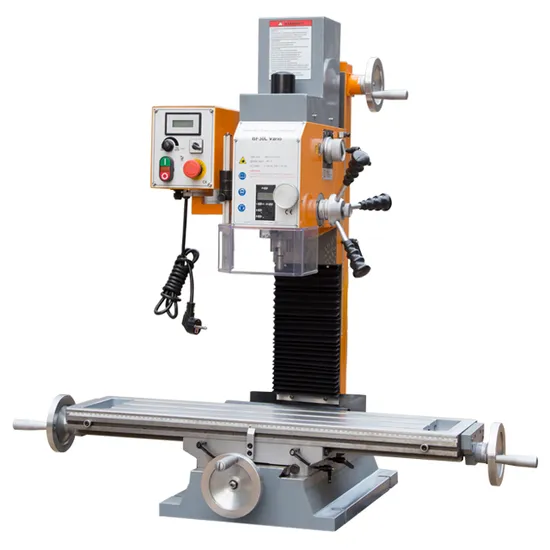

ZAY7030V Drilling and Milling Machine with Good Quality

Product Description

Product Description
Milling and Drilling Machine Main Features:
1. With micro feed handwheel;
2. High precision bored and honed milling head;
3. Tilting and swieveling head;
4. Geared drive, lower noise.
Main specification

MAIN SPECIFCATIONS	ZAY7030V
Drilling capacity	30mm
Max.face mill capacity	70mm
Max.end mill capacity	30mm
Working table size	840x210mm
Spindle taper	MT3
Spindle speed	100-2500rpm
X axis travel	570mm
Y axis travel	200mm
Z axis travel	350mm
Motor power	0.9kw
N.W./G.W.	220/260KGS
Packing size:	870x630x1000mm

Standard accessories:
Speed dislay
Morse taper MT2/B16
Draw in rod M10
Drill chuck 0-13mm
Tool box and tools
Optional accessories:
Coolant pump
Milling vice
Keyless chuck 1-13mm/B16
Milling chuck
End mill cutter
Standard with chip tray
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
