High Performance Sludge Oil Refinery Pyrolysis Equipment 10tpd
| US$35,000.00-46,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XHLJ-2800-6000
Service Life
≥15 Years
Certification
CE, ISO
Voltage
380V
Structure
Horizontal
Plant Name
Sludge Oil Refinery Pyrolysis Equipment
Size
2800*6600
Weight
35000kgs
Labour Required
1-3
Input
Waste Tyre
out Put
Fuel Oil
Type
Pollution Free
Daily Process Capacity
10ton
Transport Package
Sea-Worthy Packing
Specification
2800-6600
Trademark
xhzt
Origin
China
HS Code
841989
Production Capacity
25sets/Month
Packaging & Delivery
Package Size
6600.00cm * 2800.00cm * 2800.00cm
Package Gross Weight
32000.000kg
Product Description
1.Specification:
Specification | Size (dia*length) | Weight | Working area | Power | Water consumption | Heating way | Daily capacity |
XHLJ-2800*6600 | 2800*6600mm | 35000kgs | 800-1000M2 | 20KW | 500KGS | Direct/indirect heating | 10-12Ton |
Input | output | Oil rate | Cooling way | Batch working time | Fuel for heating | reactor running spead |
Tyre, plastic, | tyre oil plastic | 35-50% for tyre 50-80% for plastic | Water pool cooling Condenser cooling | Feeding 2-4hours Heaing 6-8hour Cooling 6 hours Slag out 1.5hour | Coal, wood, gas, oil | 0.25-0.4/min |
2.Major parts

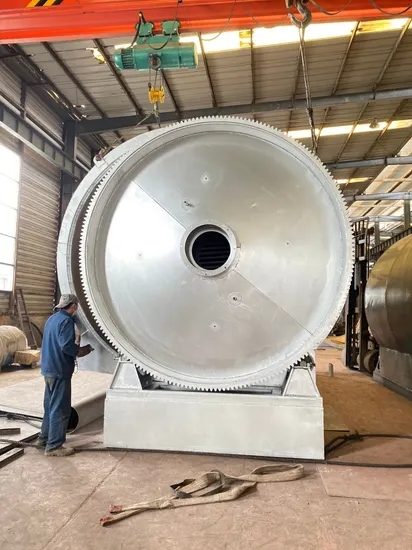

Reactor | 1. Made of Q245R boiler steel. Also can choose Q345R 2. Auto-welding both inside and outside 3. With rock wool and first grade alumilum insulation board |
Auto-feeder | 1. 60 ton hydraulic pressure 2. Can feed all types of materials 3. Save labor and time |
Catalyst chamber | 1. improve oil yield and oil quality 2. Reduce the speed of oil gas so that it can be better cooled |
Oil-water separator | 1. Separate oil and water 2. Collect heavy oil 3. Water sealing design keep safety |
Condenser | 1. Include condenser pipe, horizontal condenser and waste gas condenser 2. The oil gas is cooled separately by small pipes inside condenser 3. Light oil is collected here |
Vacuum device | 1.Keep machine running under normal pressure 2.Have founction of keeping safe |
Anti-back fire device | 1. Recycle residual gas to furnace as fuel 2. Water sealing design prevent tempering |
Dust removal device | Dispose of flue gas caused by using coal, wood, oil or natural gas. |
Final product and usage
output | usage |
crude oil(45%-55%) | Burn as fuel oil : power plant factory Cement factory Boiler factory and so on Refine to diesel : Low speed engine like digging machine road roller loading machine and so on |
carbon black(30%-35%) | Make carbon black bars through carbon black pellet machine as fuel grinding to Increase the mesh of carbon black to make new tyre ,painting and so on |
steel wire(10%) | The steel wire from waste tyre can be re-sale to steel factory |
combustible gas(5%) | recycled to heat the reactor as fuel.save energy |
Profit Analysis Report of waste tires oil extraction machine | ||
1set 10 tons capacity machine as sample | ||
NO. | Iterm | Cost of per batch |
1 | 10 tons of waste tire | 10T* 130$/T= 1300$ |
2 | 0.3 tons of caol | 0.3* 97.6$/T= 29.28$ |
3 | water | 0.4$ |
4 | electricity | 15.6$ |
5 | workers | 4* 16.3$= 65.2$ |
total cost | 1410.48$ | |
NO. | Iterm | Income |
1 | Crude oil (40%-45%) | 10T* 40%* 715.5$/T= 2862$ |
2 | Carbon black (30%-35) | 10T* 30%* 73$/T= 219$ |
3 | Steel wire (10%-15%) | 10T* 10%* 300$/T= 300$ |
4 | Gross profit | 3381$ |
5 | Daily net profit | 1970.52$ |
6 | Monthly net profit | 43351.44$ |
7 | Yearly net profit | 433514.4$ |
