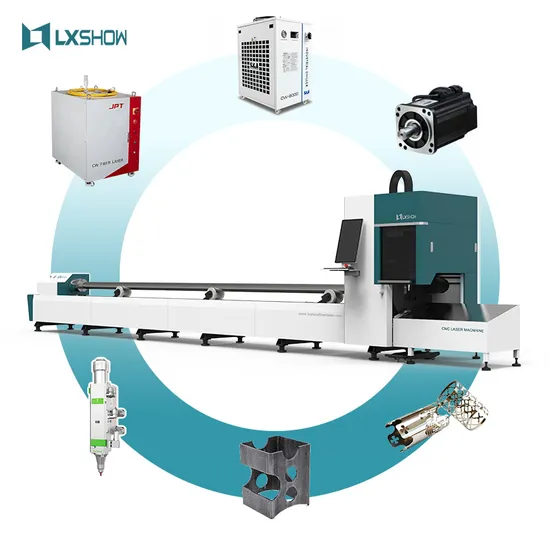

2024 Industrial Manufacturer Fiber Laser Cutting Machine for Aluminum Pipe for Sale

Product Description

Advantages
1.Heavy-duty welded bed, it can meet the high-speed operation of the machine without shaking.
2.Semienclosed design, equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers.
3.The front end of the machine is surrounded by design to improve the dust removal effect.

4.Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step, level processing.

5.The rear chuck equipped with a waste collection system
6.Followup support component system. During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation.
7.The front end is equipped with omni-directional double follow-up module to ensure the cutting accuracy, and the automatic inclined blanking can prevent the pipe from being scratched .
8.The machine is equipped with Bochu special chuck, which has better dynamic performance, speed can reach 80r/min, acceleration can reach 1.5G
9.BOCHU 5000 bus system, with better expansion performance, it can support fully automatic feeding system in the later stage.

Product Parameters

Model	LX62TH
Power	Raycus 1000W
Cutting speed	Max 80m/min (Depending on material thickness)
"y" axis single feeding length	1200mm
"z" axis adjustment range	65mm
"w" axis adjustment range	360°
Machine repeat positioning accuracy	±0.05mm/1000mm
Machine positioning accuracy	±0.1mm
Maximum acceleration	1.2G
Electricity demand	380V / 220V
Cutting accuracy	±0.1mm
Accuracy	±0.1mm
Max . raw material length (mm)	≤6200
Max. finished part length (mm)	1200
Pipe remain length (mm)	180
Multi-funtional cutting	Mitre cut ,rectangular ,slot,square, circular ,cold mouth ,special profiles

Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
Off-line Activity
Certification Display
About machine quality, we have get the third party certification, and about the machine, we have 3 years machine warranty, if you need, we always here.
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.Q: Payment terms?A:TT/West Union/Payple/LC/Cash and so on.Q: I don't know how to use after I receive or I have problem during use, how to do?A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.Q: I don't know which one is suitable for me ?A :just tell us below information1) Max work size:choose most suitable model.2) Materials and cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany you in factory 1-3 working days.(Every one learning ability is different,also according to details)2) If you need our technician go to your local factory to teach you ,you need to bear the technician's business travelling ticket / room and board/ 100 USD per day.
