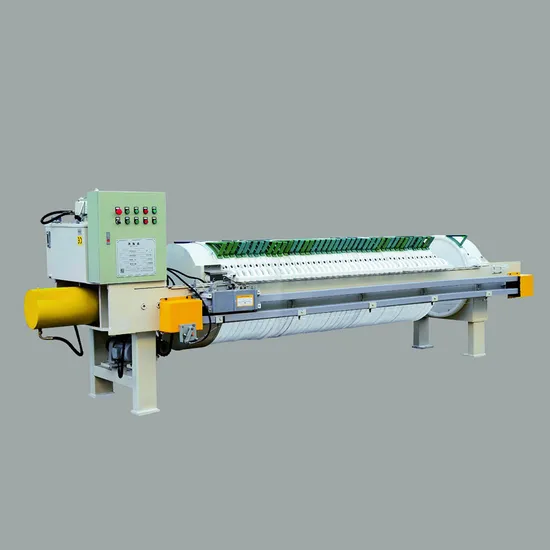

Stone Processing and Sewage Treatment Plant High Pressure Water Circular Filter Press Machine

Product Description

Product Description
1. Adopt deformation resistance and high pressure imported polyethylene circular filter plate(PE), high pressure filter does not spray, can not add pharmaceutical high-pressure filter, filtering pressure can be up to more than 25 kg. Mud cake with moisture content of 20% (depending on different materials) can be obtained.
2. The new patented hydraulic system is equipped with precision hydraulic cylinder with high pressure, long continuous service life and automatic pressure-keeping function.
3. Complete with PLC automatic electric control system, the main frame is processed by precision machine tools.
4. Supporting hydraulic high pressure ceramic plunger pump high pressure feed filter, feeding pressure is high, fast, supporting automatic variable system (high speed and low pressure in the early stage, medium speed and medium pressure in the middle stage, late stage low speed and high pressure) fast feed press. The whole process is completed automatically, saving more than 30% of the time.
5. Suitable for sand washing and sewage treatment, stone processing and sewage treatment, ceramic kaolin and porcelain clay pressing, mine tailings treatment, factory sewage treatment and other industries.


Product Parameters

Ultra High Pressure Circular Filter Press
Type	Unit	820-40	820-60	820-80	1000-40	1000-60	1000-80	1000-100
Diameter of filter plate	mm	820	820	820	1000	1000	1000	1000
Number of filter plates	pcs	40	60	80	40	60	80	100
Filter pressure	mpa	0-2.5	0-2.5	0-2.5	0-2.5	0-2.5	0-2.5	0-2.5
Filter area	m²	40	60	80	60	90	120	150
Feed pump model		YNG15	YNG25	YNG25	YNG25	YNG40	YNG40	YNG40
Filter pressure	min	1-10cube	1-15cube	1-20cube	1-20cube	1-25cube	1-30cube	1-35cube

Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.
