Automatic High Speed Vd3350 Digital Label Die-Cutter

Product Description

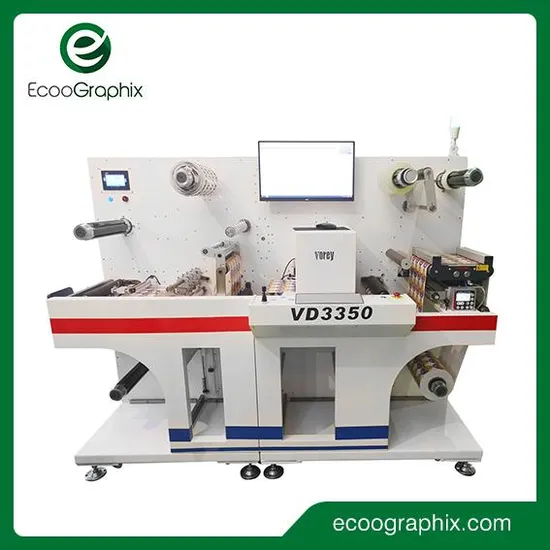

Automatic High Speed VD3350 Digital Label Die-Cutter
(Model: VD3350)
Product Description
Introduction:
VD3350 is all-in-one digital label finisher equipped with cutting, laminating, slitting, sheeting, matrix removal. The maximum cutting speed is 18M /min (10cm x 10cm square) and automatic job changing by serial number. Most of operations are done automatically like cutting heads selection, which cutting head to use, etc. You can see the estimated time to finish each cutting job in cutting software. It has CCD camera system for fine cutting accuracy. VD3350 is the most ideal digital label finisher. Advantage:1. Fast and high precision with full-servo motor 2. Fully automatic tension and feeding control 3. Intelligent position, choose file automatically 4. Standard 4 cutting heads distance can be adjusted automatically 5. Support 3 units cutting simultaneously 6. Intelligent cutting with trajectory optimization
Specification

Model	Ecoo-VD3350
Max. media roller	Diameter 450mm
Cutting media width	40-350mm
Max.label width	330mm
Min.label length	10mm
Max.label length	600mm
Cutting speed	Max.9m per minute (depend on label shape and size)
Cutting blades	4 pcs (standard)
Slitting blades	Max.15pcs (standard 4 pcs )
Cutting tracking	CCD camera
Die-cutting technology	With tungsten steel rotary blades
Cutting precision	0.1mm (duplicate)
Slitting speed	Max. 100m per minute
Slitting width	10-330mm
Slitting precision	0.1mm
Machine size	2100*1195*1575CM (W*D*H)
Machine weight	1200kg
Power	110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty	1year (besides high consumable parts)
Options	Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter

Machine Spare Parts
1. High precision feeding system
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2. Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3. Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.
4. CCD identify system
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.

5. Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
6. The waste removing system
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
7. Sheet Cutter
The optional built-in Pc350 Sheet Cutter, can be inline with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.

More Details
FAQ1. What are your main products?We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.2. Where is your factory?Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink. 4. What is the Lead Time?Usually 30 days, and we will try our best to meet your demands.5. What about the Installation and after-sales technician support?Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hour.
