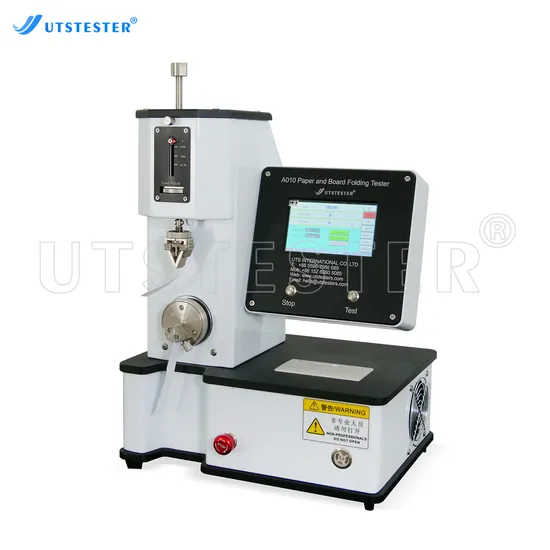

ISO 5626 Paper and Board Folding Tester Paper Folding Fatigue Strength Tester

Product Description

Product Description
Paper folding tester is used to test folding time of paper, it can also be used to test other materails that need to have endure folding function, such as case board, craft paper, paperboard, corrugated paper grey paper.
Standard

GB/T457; QB2679.5; ISO 5626

Features Save the initial Settings when the power is off, and the test is automatically reset; Automatic measurement, intelligent judgment function, breakpoint automatic stop to save data; Independent suction ventilation and heat dissipation system, suitable for long-term fatigue test internal heat; Application Range

Various paper, case board, craft paper, paperboard, corrugated paper grey paper.

Product Parameters

Model	Technical parameters:
Pressure Measurement range	5000N
Measuring size selection:	(350×350×400)mm
Resolution Ratio	0.01N
Force accuracy	±1% or less
Deformation amount error	≤±1mm
Test force test range	0.4%~100%FS
Parallelism of platen	≤1mm

Test speed	(55±5) mm/min
Upper and lower air shift speed	140 mm/min
Unit interchangeability	N/Lbf /kgf
Human-machine interface	liquid crystal display, with curve display
Printer	modular one-piece thermal printer
Working Environment	temperature (20 ± 10 ° C), humidity < 85%
External dimensions	(L × b × h): 580 × 440 × 850mm
Weight	about 150KG
