Sari Jacquard High Speed Rapier Loom 380cm

Product Description

Product Description

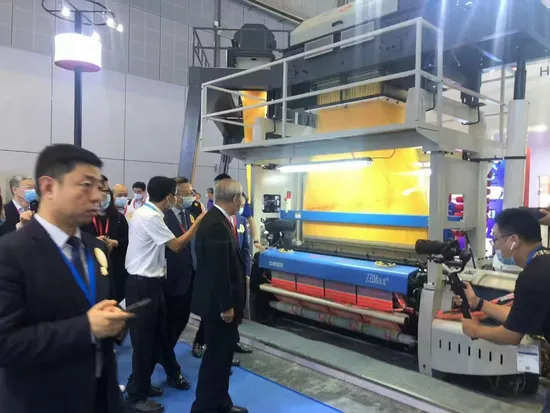

ZBMAX98J High Speed Jacquard Loom: A Versatile Choice for the Home Textile Industry The ZBMAX98J high speed jacquard loom is suitable for cotton spinning, silk silk, silk, viscose, etc., mainly used for home textile decorative fabrics, sofa hair, jacquard shirt fabrics, ribbons, calligraphy and paintings, etc. Performance
· High speed
· Excellent fabric quality
· High efficiency
Investment & Use cost
Low investment
· Fast return
· Long service life
Simplicity
· Easy operation
· Quick replacement variety
· Wide variety adaptability
Product Parameters

Reed Width	190, 210, 220, 230, 260cm (narrow-weaving machine) 280, 340, 360 cm (wide-weaving machine),380cm,410cm, 520cm, 580cm, 600cm
Weaving shrinkage	70cm (narrow-weaving machine), 90cm (wide-weaving machine)
Loom drive	Directly driven by switched reluctance main motor
Speed	Designed maximum speed of 750 rpm, Economical speed of 550-600 rpm
Filling insertion rate	Up to 1425 m / min
Weft color selection	Programming of 1-8 color or different specifications.
Weft insertion	Unique weft insertion mechanism with the space connecting bar (patent). 16mm narrow sword belt, single guide flight system. 27mm wide sword belt, unguided flight system (optional).
Let-off	Servo motor control 850Kg weighing tension sensor. Warp beam removing device Double back rest system
Shedding	STAUBLI 2658B electronic rotating dobby Up to 20 head frame tappet motions (optional), jacquard head (optional).

Main techanic Datas:
1. The high-force torque motor is used as the main drive and powerful clutch to realize starting and braking, which maximizes the quality of the cloth surface;
2. Electronic dobby opening: up to 20 heald frames;
3. Space four-link mechanism weft insertion: separate reed seat, weft insertion on both sides, middle handover; There are two ways of guide hook weft insertion and free flight weft insertion;
4. Electronic let-off and electronic take-up realize constant tension weaving and variable weft dense weaving. Packaging & Shipping
Company Profile
About us:
Jiangxi Zhongbo Intelligent Equipment Manufacturing Co., Ltd. is a high-tech enterprise dedicated to the integrated activities of research and development, production, and sales of high-end intelligent equipment. Situated in Fuzhou City, the cradle of Jiangxi's talents, Fuzhou is renowned as a city that is business-friendly, liveable, and inviting for travel.
Zhongbo Intelligent has introduced a range of intelligent, high-speed, information-based, and integrated high-end weaving equipment. The "ZBMax88" high-speed rapier loom, in particular, has attained the international advanced level and garnered the approval of users. Simultaneously, the company has unveiled intelligent equipment products such as intelligent high-speed rapier industrial cloth looms and high-speed rapier jacquard looms.
The core team members of the company are the cream of the textile machinery industry, a conglomeration of talents from fields including mechanical design, electrical design, software development, big data, and cloud computing. With characteristics like high speed, high efficiency, intelligence, wide adaptability, and user-friendly operation, they are designed to meet market demands. As a result, the company has developed a series of high-speed looms that stand as representatives of the world's most advanced and intelligent equipment.
Our company adheres firmly to the enterprise spirit of "dedication, integrity, efficiency, and innovation." We are committed to promoting the upgrading of the textile industry and wholeheartedly invite friends from all walks of life to join us in weaving a prosperous tomorrow.
Our Factory:
Our Advantages
Our Team:

After Sales Service
One year for mechanic and electronic spare parts
one-site installation service
24 hours online service
FAQ
1.Q:What are your payment terms? A:L/C,D/A,D/P,T/T,Western Union,MoneyGram

2.Q:What is your logistics method?
A:Express,sea,lan,air

3.Q:How long is your lead time?
A:30-90 Days

4.Q:How about your after-sales service?
A:We offer engineers available to service overseas under merchandiser's supervision and translation

5.Q:Can i go to the factory for a field trip?
A:Welcome to our old and new friends to visit our factory very much,In addition,if you wish we will send you our instructions and relevant information to facilitate a face-to-face meeting
6.Q:Are you a manufacturer or trading company?
A:We are the leading manufacturer of high speed rapier loom and fully automatic sectional warping machine. And also with many years business relationship with Local textile machinery accessories factories, we also have a trading company to supply one stop solution for our foreigh customers
WEAVE YOUR BRIGHT FUTURE TOGETHER WITH ZHONGBO RIGHT NOW.
