Miniature Swiss Style CNC Lathe Machine with Live Tool (BL-CSL123/203)
Basic Info.
Model NO.
BL-CSL123/203
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

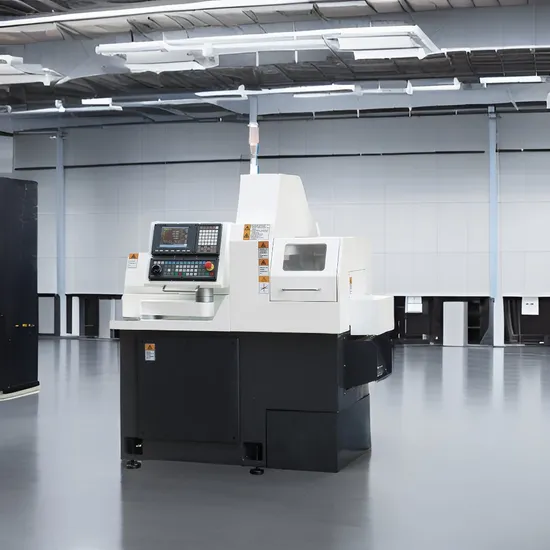

Swiss Type Automatical Lathe (BL-CSL123/203)- Single spindle,total 3 axes - Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand - Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity - Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm - Adopt TAIWAN HIWIN brand high precision ball screw and linear guideway - Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes - After mount automatic bar feeder, can realize automatic machining - Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:
| Item | Unit | BL-CSL123 | BL-CSL203 | |
| Max. machineable bar dia. | mm | Φ12 | Φ20(opt.:25) | |
| Main spindle bore | mm | Φ16 | Φ25(opt.:27) | |
| Max. machineable length | Fixed guide bushing | mm | 140(one time feed) | 200 |
| Rotary guide bushing | mm | 50(opt.) | 180(one time feed)(opt.) | |
| Guide bushless | mm | N/A | 50 | |
| Max. face drilling dia. | mm | Φ7 | Φ10 | |
| Max. face tapping dia. | mm | M6 | M8 | |
| Main spindle max. speed | rpm | 6000 | 8000 | |
| Main spindle motor | kw | 2.2 | 4.2 | |
| Main spindle index | / | C axes(continuation) | ||
| Rapid moving speed(X/Y/Z) | m/min | 20/24/24 | ||
| Spindle flopping | mm | ≤0.002 | ||
| Repeat positioning accuracy | mm | ≤0.003 | ||
| O.D. tool | mm | 5 position 10*10 | 5 positon 12*12 | |
| Axial drilling tool(fixed type) | / | 4 position ER11 | 5 position ER16 | |
| Radial type live tool | / | 3 position ER11(opt.) | 2 position ER11+2 position ER16 | |
| Max. radial drilling dia. | mm | Φ6(opt.) | Φ8 | |
| Radial type live tool speed | rpm | 5000(opt.) | 5000 | |
| Coolant pump | kw | 0.22 | ||
| Overall size | mm | 1510×1000×1660 | 1600×1250×1760 | |
| N.W. | kg | 1300 | 2100 | |
Main parts list:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC |
| Servo electro-spindle | TAIWAN |
| Servo motor&driver | TAIWAN-SYNTEC |
| Spindle encoder | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSK P4 class |
| Ball screw bearing | JAPAN-NSK |
| Ball screw | TAIWAN-HIWIN |
| Linear guideway | TAIWAN-HIWIN |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Lock nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR |
Standard configuration: - SYNTEC 22TB CNC controller
- Single spindle
- Parts catcher(without convey belt) Optional configuration: - High pressure coolant system - Oil mist collection system - Automatic chip conveyor - Automatic bar feeder Other models choice:
