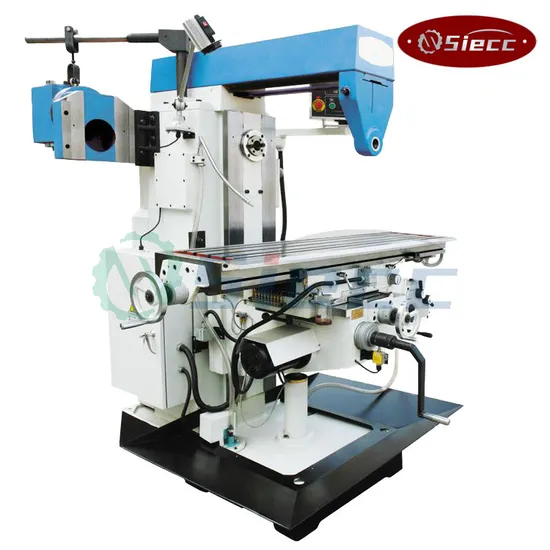

X5032 Universal Manual Knee Type Vertical Milling Machine for Sale
| US$4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5032
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
X5032
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year
Product Description
1. VERTICAL MILLING MACHINE X5032 is easy to operate, reliable performance.2. X5032 Vertical milling machine used in all kinds of mechanical processing department.Processing all kinds of flat, grooved ,gear.
3.Configuration such as rotary table, dividing the first milling machine accessories, can further expanding the scope of the machine tool use.
| Specification | Unit | X5032 | X5032B | X5032H | X5032BH |
| Table size | mm | 320X1325 | 320X1600 | 320X1325 | 320X1600 |
| T-slots(NO./Width/Pitch) | | 3/18/70 | |||
| Longitudinal travel (manual/auto) | mm | 700/680 | 900/880 | 700/680 | 900/880 |
| Cross travel (manual/auto) | mm | 255/240 | |||
| Vertical travel (manual/auto) | mm | 370/350 | 460/440 | ||
| Rapid feed speed X/Y/Z | mm/min | 2300/1540/770 | |||
| Spindle bore diameter | mm | 29 | |||
| Spindle taper | | 7:24 ISO50 | |||
| Spindle speed range | r/min | 30-1500 | |||
| Spindle speed step | steps | 18steps | |||
| Stroke of spindle quill | mm | 70 | |||
| Max.swivel angle of vertical milling head | | ±45° | |||
| Distance between spindle nose and table surface | mm | 30-400 | 30-490 | ||
| Distance between spindle axis and column guideway | mm | 350 | |||
| Feed motor power | kw | 1.5 | |||
| Main motor Power | kw | 7.5 | |||
| Overall size(L×W×H) | mm | 2294×1770×1904 | 2294×2050×1904 | 2294×1770×2084 | 2294×2050×2084 |
| Net weight | kg | 2900/3200 | 3000/3300 | 3100/3400 | |
Standard Accessories of VERTICAL MILLING MACHINE X5032
| 1 | Crank | |
| 2 | Double head wrech | 13*14 |
| 3 | Double head wrech | 27*30 |
| 4 | Double head wrech | 32*36 |
| 5 | Inner hexagon spanner | 5 |
| 6 | Inner hexagon spanner | 8 |
| 7 | Inner hexagon spanner | 10 |
| 8 | ISO 50 Milling arbor | |
| 9 | Milling Bar | |
| 10 | Push grease gun |
