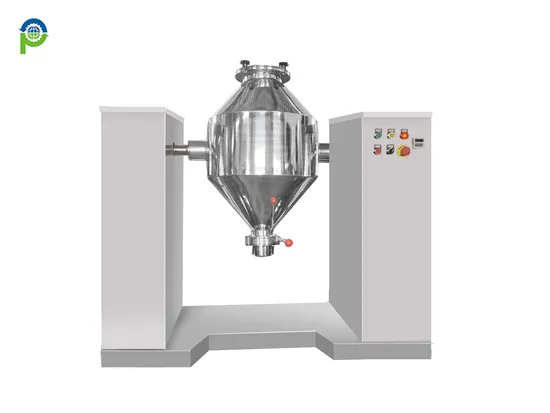

Double Cone Blender Mixer Machine

Product Description

Application
RELA Double Cone Blenders are used for the drying blending of free flowing solid (powder, granule, etc.) in Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.
Working Principle
RELA Double Cone Blenders designs are most often used for the dry blending of free flowing solid. The solid being blended in these units can vary in bulk density and in percentage of the total mixture. Materials being blended are constantly being intermixed as the shell rotates. Normal cycle times are typically in the range of 15 minutes, however can be less depending on the difficulty of blending.
Standard Features Suitable for bulk densities up to 0.6x103kg/m3 MOC SS304; supporting frame by Carbon Steel Mirror polished for both interior and exterior Hinged charging port Manually-operated butterfly discharge valve Fully integrated motors and controls Available Options Higher power for handling higher bulk densities MOC SS316L; All Stainless Steel construction Matte polishing Intensifying bar for deagglomeration Safety railings Explosion-proof; special voltage/frequency motor PLC & HMI control; VFD for speed control Vacuum Loading System Technical Paramete

DCB Blender	Full Holding		Working Capacity		Power	Speed	*Overall Dimensions (mm)				*Weight
Model	Liters	Cu. Ft.	Liters	Cu. Ft.	KW	RPM	L	W	H1	H	KG
DCB-50	50	1.77	25	0.885	0.75	12	1200	450	550	1100	200
DCB-100	100	3.53	50	1.77	1.1		1300	600	550	1400	230
DCB-150	150	5.3	75	2.65	1.1		1500	750	550	1600	250
DCB-180	180	6.35	90	3.175	1.1		1600	800	550	1700	280
DCB-300	300	10.6	150	5.3	1.1		1900	950	550	1900	380
DCB-500	500	17.7	250	8.85	2.2		2200	1100	550	2280	550
DCB-1000	1000	35.3	500	17.7	4		2500	1300	550	2400	700
DCB-1500	1500	53	750	26.5	4		2800	1400	550	2500	900
DCB-2000	2000	70.6	1000	35.3	7.5		3000	1650	550	2750	1500
DCB-2500	2500	88.25	1250	44.125	7.5		3200	1700	550	3100	1800
DCB-3000	3000	106	1500	53	7.5	7.8	3400	1800	550	3150	2200
DCB-4000	4000	141.2	2000	70.6	11	7.8	4500	2000	550	3500	2800

*The data are estimated for reference only. (1L=0.0353cu.ft.; 1cu.ft.=28.3L)
Layout
