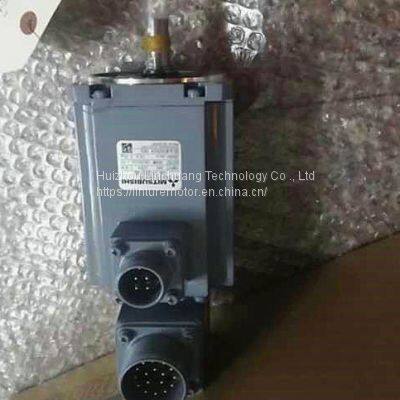

HA-FF33C-UE Mitsubishi Industrial Servo 129V Single Phase Modular

Product Details

Product Description

Product Description
Category:Model:Rated Output Power:Rated Speed:Series:Brand:High Light:

Industiral Servo Motor	HA-FF33C-UE
300W	3000r/min
HA-FF	Mitsubishi
ewing machine servo motor,electric servo motor

Installation
The flange of the machine mounted with the HC-MF(HC-MF-UE)/HC-KF(HC-KF-UE)/HC-AQ/HC-
MFS/HC-KFS must be connected to the earth.
Performing EMC tests
When EMC tests are run on a machine/device into which the servo motor has been installed, it must
conform to the electromagnetic compatibility (immunity/emission) standards after it has satisfied the
operating environment/electrical equipment specifications.
For the other EMC directive guidelines on the servo motor, refer to the EMC Installation Guidelines
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
