Sinotruk HOWO 6X4 10wheelers 6m3 8m3 10m3 12m3 6cbm 8cbm 10cbm 12cbm Concrete Mixer Truck

Product Description

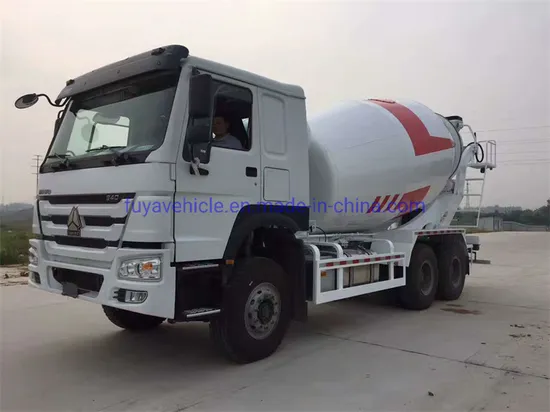

HOWO 8 to12m3 Concrete Mixer Truck
I. Products Description Advantage Of concrete mixer truck
1.Low energy consumption and environmental protection.
2.The hydraulic system has the feature of lower energy consumption.
3.Simple quick-change construction can meet multipurpose operation of users.
4.The integrated multi-functional control handle makes operation simple.
HOWO New Mobile Cement Mixer 6x4 Concrete Mixer Truck Parameters

Chassis parameters
Chassis brand		HOWO	Chassis brand	ZZ1257
Overall dimensions		8550X2496X3850mm	Wheel base	3825+1350 mm
Cab	HW76 cab, allowable 3 passengers, air conditioner
Clutch	φ430 diaphragm clutch
Fuel tank	300L
Axles	HF 9, drum type/ HC16
Drive form	6X4
Engine	Model	WD615.69
	Rated power	336hp,rated power speed 2200rpm
	Emission	Euro II
	Type	6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection, diesel engine
	Displacement	9726ml
Tire	Size	12.00R20 steel wire tire
	Number	10+1 nos
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Gearbox HW19710,10 speed forward 2 reverse
Steering device	Power assisted steering, steering machine
Steering	Left Hand Drive or Right Hand Drive
10 cubic meters tank
Mixer Tank	Concrete mixer truck structure parameters
	Mixing capacity	10m3	Water tank capacity	300 L
	Tank material	5mm alloy steel	Tank front head	8mm alloy steel
	Reducer	Italy Bonfiglioli	Hydraulic motor	Germany REXROTH
	Hydraulic pump	Germany REXROTH	Radiator	KAIPENG
	Standard configuration	chassis,sub frame,mixer tank, Italy Bonfiglioli reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
	Selective configuration	Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system. Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.

There are Technique Parameters table above,if it didn't show,you can check it by computer or contact us!
We can offer diferent brand and volume capacity of the concrete mixer truck!
II. Concrete Mixer Truck Details
Capacity Of concrete mixer truck
The concrete mixer truck includes many models such as 1.5m3,2m3, 3m3 , 5m3 ,
8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any semi tailor made or mixer truck
special chassis as supporting part are available to choose
1. Chassis Model: SINOTRUK, NORTH BENZ, SHACMAN, DONGFENG, etc.
2. Capacity: 3 CBM16 CBM
3. Drive model: 4X2, 6X4, 8X4;
4. Engine: Euro 3/4/5
5. Right/Left hand drive;
III. About Us
HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,
sales and service in special trucks like as boom truck, fire truck, manlift truck, tank truck, garbage truck, tipper truck, wrecker
truck, refrigerated truck, water truck, etc.
Our main products:
Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria,
Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our
Factory Is Getting Better And Better.
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current
production condition.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Contact person
Sale Manager: Mr. Jack
