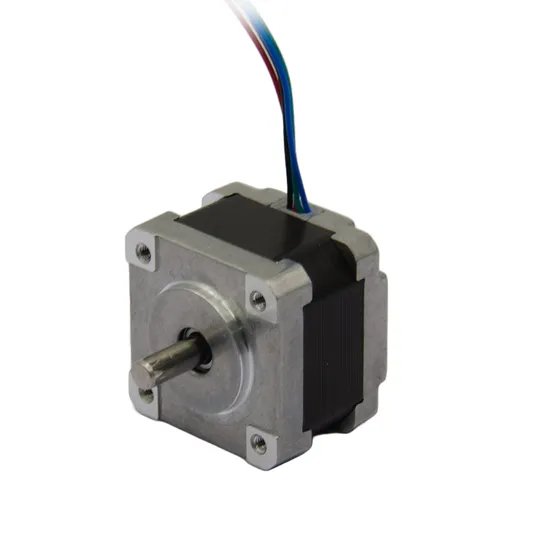

Swiftglide Plus Stepper Motor Fabrication Expertise Accumotion

Product Description

Product Description
Product Parameters

Part Number	Units	35HS027DF140X-01	35HS027DF220X-01	35HS027DF650A-25	35HS034DF15DX-01	35HS034DF170X-01
Base Size	mm	35	35	35	35	35
Phase	/	2	2	2	2	2
Step Angle	°	1.8°	1.8°	1.8°	1.8°	1.8°
Length	cm	27	27	27	34	34
Holding Torque	N.cm	12	13	13	20	20
Rated Voltage	V	2.1	2.2	3.25	7.7	2.55
Current	A	1.5	1	0.5	0.5	1.5

Running Torque	100RPM	11.3	12.2	12.5	18	18.3
	300RPM	10.1	10.8	11.5	16.8	16.6
	600RPM	8.6	8.5	8.8	13	13.3
Resistance	Ω	1.4	2.2	6.5	15.4	1.7
Inductance	mH	1.65	2.1	7.8	19.6	2.1
Detent Torque	N.cm	0.35	0.42	0.44	0.64	0.65
Rotor Inetia	g·cm²	14	14	14	20	20
Number of lead wires	/	4	4	4	4	4

Connect type	/	outgoing line	outgoing line	outgoing line	outgoing line	outgoing line
Protection level	/	IP40	IP40	IP40	IP40	IP40
Weight	kg	0.15	0.15	0.15	18	18

Application AreaOur Advantages 01 Quality Advantage 02 Cost Advantage 03 Delivery Advantage
The company introduced IATF16949 quality Application of SAP management system, Stepper motor 1 million pcs/month.
system to standardize the design and from raw materials to production process Brushless motor 80,000 pcs/ month.
manufacturing process, so that each link is strict control. Promote production automation, Servo motor 30,000 pcs/ month.
effectively controlled. improve process efficiency and reduce losses.
04 Technological Advantage 05 Service Advantage
Have the ability to accurately analyze and calculate the magnetic To provide customers with complete product solutions.
circuit and structure of the motor, so as to meet the design Active service, quick response.
requirements required by the product. Have a full set of product
testing and testing equipment. Implement project management and
product research.
Certifications Company ProfileChangzhou 3X Motion Technologies Co., Ltd. was founded in 2002, specializing in the design and manufacture of various types of control motors, including: hybrid stepper motor, brush DC motor, brushless DC motor, AC servo motor, gearbox motor, driver, controller and other high-quality products. The products are suitable for robots, packing machinery, textile machinery, automatic doors, wheelchairs, medical instruments, printing machinery, intelligent logistics equipment, and other electromechanical integrated motion control products.
All products can be provided to the USA, Europe, Southeast Asia, and all over the world. The factory is located in Changzhou city, Jiangsu province, China. With a total of 300 employees and a plant area of 15,000 square meters, the company has an annual output of 10 million units of various types of motors and a sales volume of 320 million CNY.Exhibition Information
FAQQ: What kind of motors can you provide?
A: At present, we mainly produce brushless DC motors, Servo motors, Hybrid stepping motors, and brushless conveyor roller etc.
Q: Can l get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there are no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable,we'd love to provide samples.
Q: Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q. What about wait times?A: Samples take 7-10 days.
Q: How do you ship the goods? How long will it take to get there?A: We usually ship by air. It usually takes 7-15 days to arrive. Please contact us if you need another mode of transportation before shipping.
Q: Can you provide OEM or ODM service?
A: Yes,OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Q: What's the lead time for a regular order?
A: For orders, the standard lead time is 15-20 days and this time can be shorter or longer based on the different model, period and quantity.
Q: What are your payment terms?A: T/T and other payment methods are available. Please contact us with the payment method you require before ordering. Payment terms: 30%-50% deposit, balance paid before delivery.
Q: Can my logo be printed on the product?A. Yes. Please inform and authorize us officially before we produce, and confirm the design according to the sample.
Q: Can l visit your factory before we place an order?
A: Welcome to visit our factory, we are very pleased if we have the chance to know each other more.
