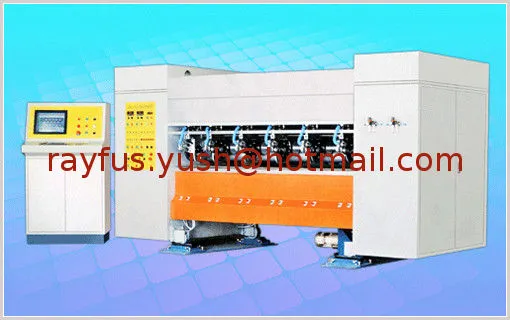

Nc Thin Blade Slitter Scorer

Product Description

NC Computer-control Thin Blade Slitter Scorer 1) NC Computer-control Thin Blade Slitter Scorer improved with pre-scoring, 0mm slitting width optional;
2) machine axial electric move 200mm, effective with the paper offset;
3) adopt thin knife high-speed slitting, precision ball screw and linear guide transmission;
4) thin tungsten steel alloy blade, sharp edge, long service life more than 8million meter;
5) upper slitter wheel, upper scoring wheel pneumatic control lift up & down, not to cut off the cardboard while changing orders;
6) computer monitor automatically track the production line speed, to ensure the synchronization;
7) electric sharpening system can achieve the production process, non-stop sharpen blades, sharpening device according to the material or trimming conditions to set at any time, the time interval meter and the time of sharpening;
8) independent stepper motor control each knife stand and wheel stand, could be ranked in the case of non-stop machine, synchronization changing orders, complete and accurate specifications changes in 3-8 seconds;
9) computer storage without limit orders, production output any group of orders, according to the actual needs;
10) imported synchronous belt driver, accurate precision, long life, low noise operation.
3/5/7-layer Corrugated Cardboard Production Line 1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Corrugating Roller	Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100~200m/min
Heating Method	Steam Heating
Economic Working Speed	80~160m/min
