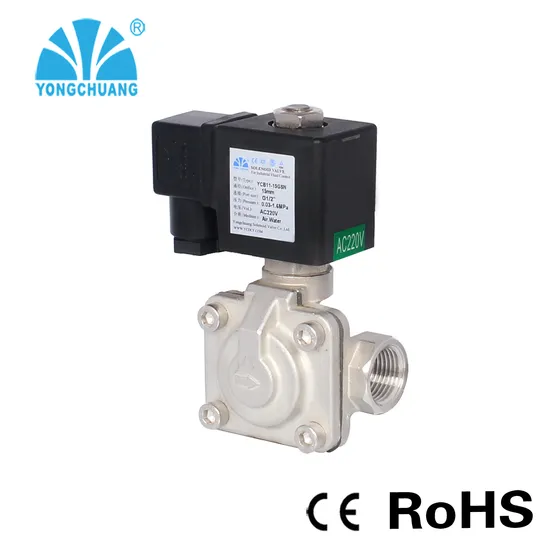

Yongchuang Ycb11/12 CE Approved Diaphragm Hot Water Solenoid Valve Brass 2 Way

Product Description

Normally closed low power longer life water solenoid valve
Packaging & Delivery
Packaging Detail: Export cartons: 31*25*21cm then into wooden pallet
Delivery Detail: 20 days after receiving deposit
Specifications
Water solenoid valve
1. ISO 9001: 2000, CE approved
2.1 million times life testing
3. Reliable quality
4, One year gurrantee
Technical parameter-YCB11 Diaphragm Pilot Operated, Normally closed solenoid valve
Characteristic
1. Pilot operated diaphragm structure with less power comsumption for long time working
2. Applied to pressure system opened from 0.03 Mpa
3. Life span can be over 1 million times
MediumAir, water etc.
Temperature
NBR: -10°C to 80 °C
EPDM: -10°C to 120 °C
VITON: -10°C to 150 °C
Pressure0.03-1.6Mpa
Port size3/8'-1'
Port threadG. BSPT, BSP, NPT, PT
Orifice12, 15, 20, 25mm
Voltage
DC-12V, 24V
AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Tolerance±10%
Coils
SA11B, 9VA(AC), 6W(DC) IP 65, 100% ED
S91B, 22VA(AC), 17W(DC) IP65, 100% ED
Special coils Latching coil: DC6-24V as requested
Material
Body- brass or stainless steel
Seal- NBR, EPDM, VITON
Amature tube-stainless steel 304
Plunger-stainless steel430F
Stop-stainless steel 430F
Springs-SS304
Shading rings- stainless steel 304
Workshop
Our Certifications
Production Delivery
Products will arrive to your office in 7~15 days after the payment is finished.
We will dispatch the valves by DHL, FedEx, TNT, UPS or by sea, it just depends on the weight of the products as well as your choice.
Our service
For OEM products
We will finish the production within 15 days after payment has been confirmed.cooperation with PARKER to improve our quality!
Warranty
Any question or problem will be respond within 24 hours.
One year guarantee:
One year since delivery.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.
Quality control:
All the products are calibrated with real working condition, and 100%tested before shipping as qualified product.
Integrity:
All the warrenty and guarantee from us will be put into come true.
Detail Contact Information:
Name: Emily Yan


Thanks for your inquire!
You can according the below table to select type for yourself!

Valve body	Port Size	Orifice	Cv	Min Pressure	Max Pressure	Seals Material	Body Material	Coil
					AC(22VA)/DC(17W)
YCB1112 X XX	3/8"	12	4.5	0. 03MPa	1. 6MPa	NBR, EPDM, or VITON,	Brass, or Stainless Steel	S91B
YCB1115 X XX	1/2"	15	4.5	0. 03MPa	1. 6MPa			S91B
YCB1120 X XX	3/4"	20	9.3	0. 03MPa	1. 6MPa			S91B
YCB1125 X XX	1"	25	12	0. 03MPa	1. 6MPa			S91B
