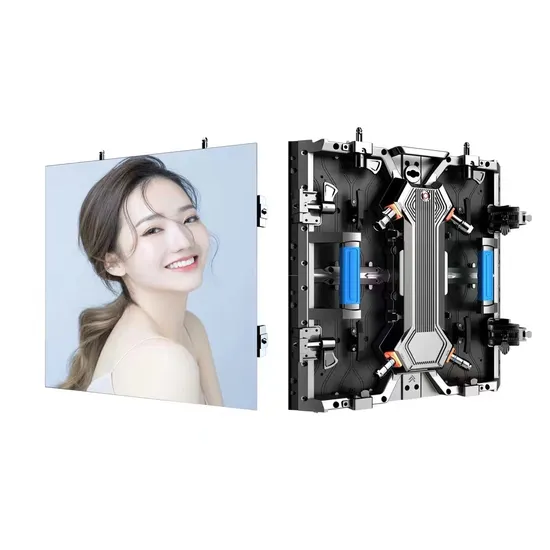

P3.91 Indoor/Outdoor Rental Events Advertising Full Color LED Display Screen

Product Description

P3.91 Indoor/Outdoor Rental Events Advertising Full Color LED Display Screen
Parameter

Unit Module	Item No.	SRX-P3.91
	Module Size	250mm*250mm
	Pixel Pitch	3.91mm
	Pixel Density	65536Dots/m2
	Pixel Color Configuration	1R1G1B / 3 in 1
	Module Resolution	64(W)*64(H) dots
	Module Max Power Consumption	32w
	Module Thickness	15mm
	Module Weight	0.573kg
	Driving Method	Constant Current Driving
	Scanning Method	1/16 scan
	Interface	HUB75
	Brightness	≥4500cd/m2
LED Screen Cabinet	Cabinet Size	500mm*500mm
	Module Quantity	4pcs
	Power Supply	5V/40A 5V/60A
	Cabinet Resolution	64*64
	Optimal Viewing Distance	4M~20M
	Optimal Viewing Angle	160°(W)*120°(H)
	Working Temperature	Storage temperature -35°C ~ +80°C
		Working temperature -20°C ~ +50°C
	System Operating Humidity	10%~75%
Power Supply	Operating Voltage	AC 220V±10%
	Average Power Consumption	350W/m2
	Max Power Consumption	≤1200W/m2
	Current	≤20mA(single LED)
Control System	Control Board	2G External Video Card/i5 processor
	Operating System	WIN7/8/10/XP
	Control Model	Synchronization Control
	Driving Device	Constant Current Driving
	Refresh Rate	≥3840Hz
	Grey Scale	RGB each256, can display16.7m colors
	MTBF	≥9000Hours
	Power Switch	Automatic Switch
	Display Mode	800*600 /1024*768 /1280*900 /1920*1080

P3.91 LED Module
Production Process
FAQ
Our Services
project case
Our company
Jiangxi Niluo electric Appliance Co., Ltd. Is a comprehensive Led manufacturer integrating R&D, production, sales and service.The company is mainly engaged in medium and high-end display products such as 1.2P to 10P led display screens and supporting products such as indoor and outdoor advertising andbusiness meeting.Suitable for shopping center, large building glass wall, stage background led display, concerts, exhibitions, chain store, clothing store, etc.It can be used as flexible screen and transparent screen, and the whole scheme can be customized according to customers' needNiluo has an independent R&D center and 7 years of mature development experience large modern chemical plants and quality inspection centers ensure that every led product produced meet international standards.
Workshop
Certification
Packing and delivery
FAQ
1. About us We are manufacturer, so the price is competivite
2. About price The price is negotiable, it can be changed according to the Qty and packing requirments
3. About delivery Our production time is about 10-25 working days
When we confirmed the order, we can start production after receiving your deposit (30% TT in advance)
4. About payment term 30% T/T in advance as deposit before production, the balance before delivery.
5. About package Wooden case for fixed installation display
Flight case for rental display
Carton for module
