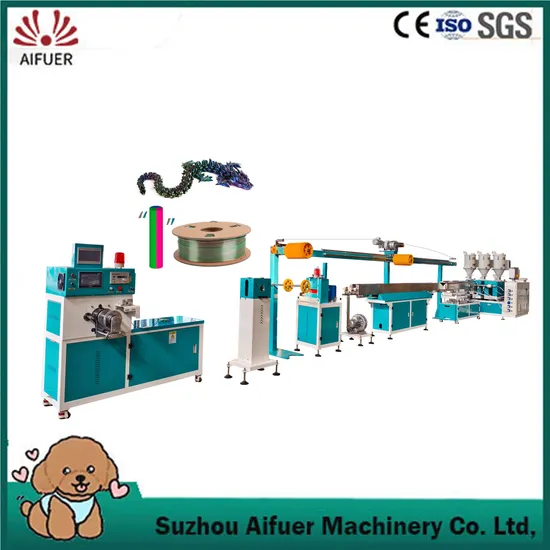

15kg/H Dual and Tricolor 3D Filament Extruder Extrusion Machine Filament Extruder
Basic Info.
Model NO.
SJ45
Type
Filament Machine
Plastic Processed
ABS
Product Type
Filament Machine
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Transport Package
Film
Specification
SJ25
Origin
China
HS Code
8477209000
Production Capacity
1kg
Product Description
:
| 1 | Hopper dryer (50KG) | 3sets |
| 2 | SJ-35/28 single screw extruder | 3sets |
| 3 | Siemens PLC (Touch control Panel /Closed Loop system) | 1set |
| 4 | Mold&die(1.75mm) | 1set |
| 5 | Air cooling system for high temperature raw material | 1set |
| 6 | Hot water tank for low temperature raw material or re-cooling | 1set |
| 7 | Water cooling tank | 1set |
| 8 | Laser Diameter measurement | 1set |
| 9 | Servo haul off machine | 1set |
| 10 | Servo winding machine | 1set |
| 11 | Chiller | 1set |
| This filament extruder shown in the video is our SJ35-28. | PLA PETG ABS ASA TPU PHA PHB |
SJ35-28: 10-15kg/hIt is the same as our big filament extruder machine, adopting servowinding and tension controlled storage system.
Screw dia.:ยข45mm
L/D: 28:1
Screw max. Rotation speed:72 rpm
Heating zone : 3 zones
Heating power: 1.2* 4kw
Heating ring: Stainless steel cover Heating method: Ceramic 2heater
Main motor power:7.5KW motor
Connection method for motor and reducer: Straight connection
Cabinet material:aluminium alloy
Center height: 960mm
Material: stainless steel 304
Air cooling table length: 3000mm
Forming table length: 3000mm
Air cooling platform height: 900mm
Variable frequency control
Fan outlet *4
| Raw material | PLA SILK etc |
| Capacity | 10-15kg/h |
| Filament dia. | 1.75mm |
| Filament dia. tolerance | +/-0.03-0.05mm |
| Speed | Adjustable |
