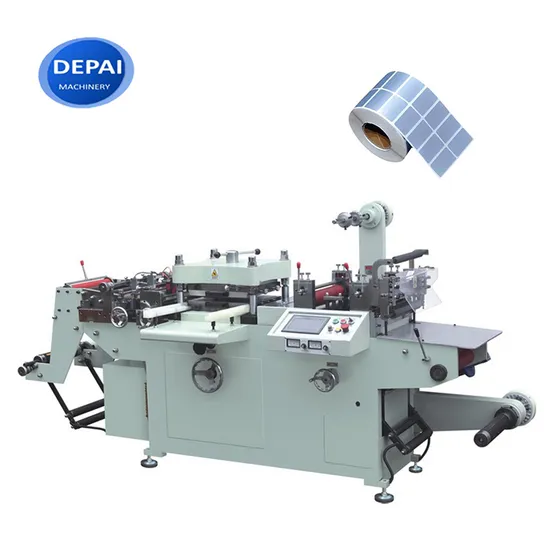

Width 350 420mm Flat Bed Die Cutter Automatic Flexo Printing Labels Die Cut Cutting Machine

Product Description

Width 350 420mm flat bed die cutter automatic flexo printing labels die cut cutting MachineProduct Description
This machine is applicable to die cut through platen with high precision,while the computer controls the slices and conveyor.The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position,while the die cutting,discarded delivery or auto trademark labeling can be finished in the processing of one web.
The machine is applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark.It is an ideal complete set of flexo printing machine,continuous thread printing machine,gravure printing machine and die compress machine for anti-false trademarks.
Specification:

Model	DP-FD350A	DP-FD450A
Max Feeding Width	320mm	420mm
Cutting Speed	30-220times/min	30-200times/min
Max Dia Of Unwinding	550mm	550mm
Max Dia Of Rewinding	550mm	550mm
Max Cutting Width	300mm	400mm
Max Cutting Length	350mm	450mm
Precision	±0.1mm	±0.1mm
Main motor	2.2kw	3kw
Total Power	4kw	4.5kw
Voltage	220V/380V	220V/380V
Weight	about 1700kg	about 2500kgs
Size	2900*1300*1450mm	3000*1400*1450mm

Detailed Photos
Standard Configuration
1. One Die Cutting Station. One Sheet Cutting Station
2. With 1pc 3'' Unwinding Shaft, 1pc 3" Rewinding Shaft
3. With Meter/Number counter.
4. With Two Photoelectric Eyes---Web Guide System
5. 1pc Color Track Photocell Sensor
6. PLC, Touch Screen...Controller
Optional configuration:
1. Hot stamping unit
2. Punching unit
3. Lamination unit Unwinding and Rewinding Air Shaft Die cutting unit
web guide system and label position eyes
Control Panel and Electric BoxOptional
Samples
Certifications
Company ProfileHangzhou Depai Machinery Co., Ltd has several production lines
in different workshops from printing machines,bag making machine,
label sticker die cutting & slitting machines, paper /PP/PLA straw machines,disposable products making machines ,to different plastic&paper and packaging machines.We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and
provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead
in China.
Our Sales Team Raw Material Maching Center
Our Workshops
Package
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery
Kindly contact us if you need other related machines.Stack flexo printing machine Full servo petal flexo printing machine Horizontal flexo printing machine Rotary die cutting machine Rotary die cutting machine Flat bed die cutting machine
Paper cup making machine Paper cup die cutting machine Screen printing machine
FAQ
1. Q: How does your factory do regarding quality control?A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose
the best quality) from the beginning. 2. Q: What is your after-sales service?A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is
damaged by natural not by human, we can send the new parts to you for free.3. Q: What is the terms of payment you accept?A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
About the machine:
Rotary die cutting is a special kind of die cutting that uses a cylindrical die to cut shapes out of material. It moves around and around in a circular motion and has blades to cut out the desired shape around the entirety of the cylinder. This is incredibly efficient because it cuts out many identical shapes as it rotates.How does rotary die cutting work? Rotary die cutting is a special kind of die cutting that uses a cylindrical die to cut shapes out of material. It moves around and around in a circular motion and has blades to cut out the desired shape around the entirety of the cylinder.How are labels die cut? Die cutting is the process by which custom labels get their shape. Whether you want your products' labels to have a simple rectangular or oval shape, or to have a more exciting form, they are cut into shape by a metal "die" during production
