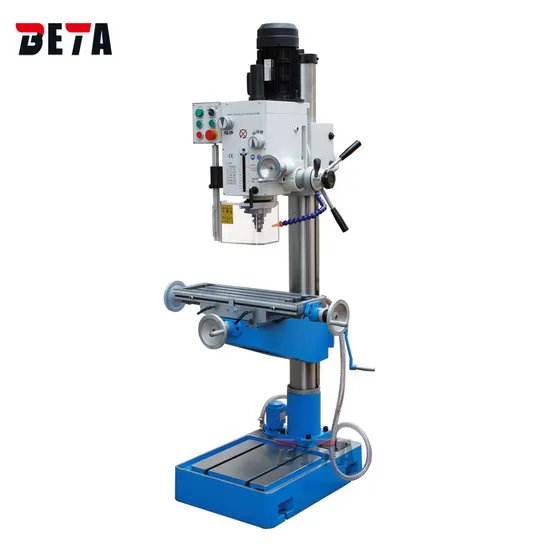

Small Vertical Milling and Drilling Machine Zx40h
Basic Info.
Model NO.
ZX40H
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Small Vertical Milling and Drilling Machine Zx40h
Max. Drilling Diameter
40mm
Spindle Taper
Mt3 Mt4 R8
Spindle Travel
120mm
Spindle Speeds Range
75-1600rpm
Power of Main Motor
1.5kw
Dimension of Base
650X450mm
Key Word
Vertical Drilling Machine
Function
Drilling Hole for Metal
Delivery Time
40 Days
Distance Spindle Axis to Column Generati
610mm
Voltage
OEM
Transport Package
Wooden Case
Specification
830x760x1870mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
83.00cm * 76.00cm * 187.00cm
Package Gross Weight
385.000kg
Product Description
Small Vertical Milling And Drilling Machine ZX40H| Model | Unit | ZX40H |
| Max.drilling capacity | mm | 31.5(MT3) , 40(MT4) |
| Max. end milling capacity | mm | 32 |
| Max.distance spindle nose to work table | mm | 610 |
| Max.distance nose to base | mm | 1180 |
| Work table size | mm | 600x190 / 730x210(optional) |
| Work table travel | mm | 370(X) 180(Y) |
| Spindle taper | - | MT3 MT4 R8 |
| Spindle travel | mm | 120 |
| Spindle speed(6steps) | rpm | 75-1600 (50HZ) |
| Diameter of column | mm | 115 |
| Dimension of base | mm | 650x450 / 670x470 (water tank) |
| Distance spindle-column | mm | 278 |
| Motor power | kw | 1.5 |
| Packing size | mm | 830x760x1870 |
| N.W./G.W. | kg | 350/385 |
Feature and Application: 1. Milling, drilling, tapping, reaming, boring
2. The headstock can be rotated and tilted
3. Spindle micro-feed (automatic feed is a special accessory)
4. Support the spindle with strong high load tapered roller bearings
5. The spindle can be locked, and the machine head can be lifted and lowered.
6. Workbench gap setting is adjustable
7. Workbench limit position adjustable
8. Gearbox drive
9. Accurate positioning, strong rigidity and large cutting force
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
