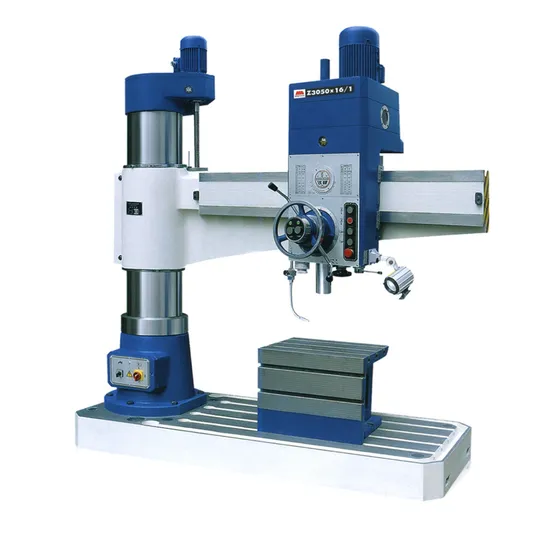

Z3050X16 Double Column Hydraulic Metal Mechanical Radial Drilling Machine for Machinery Use

Product Description

Product Description

Characters:
•Gather mechanical-electrical-hydraulic functions, use extensively.
•With wide range of speed and feed, with manual power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
•With safe and reliable feed safety machine, all parts easy operation and change.
•All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle by hydraulic power,
•Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
•Integrating technology for casting parts is excellent,adopting casting equipment, ensuring high quality of material for basic parts.
•Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability.
•Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Optional Accessories :

ER8	ER11	ER16	ER20
2.0-2.5	2.5-3.0	2-3	2-3
2.5-3.0	3.0-3.5	3-4	3-4
3.0-3.5	3.5-4.0	4-5	4-5
3.5-4.0	4.0-4.5	5-6	5-6
4.0-4.5	4.5-5.0	6-7	6-7
4.5-5.0	5.0-5.5	7-8	7-8
	5.5-6.0	9-8	9-8
	6.0-6.5	10-9	10-9
	6.5-7.0		11-10
			12-11
			13-12

Specifications	Units	Z3032X10
Max. drilling diameter	mm	32
Distance between spindle axis and column	mm	300 - 1000
Distance spindle nose and working surface of base	mm	250 - 1000
Spindle taper	mm	280
Range of spindle speeds	Morse No.	4#
Number of spindle speeds	rpm	32 - 2500
Spindle taper	step	16
Range of spindle feeds	mm/r	0.10 - 1.25
Number of spindle feeds	step	8
Table size	mm	400 x 550
Distance of headstock horizontal movement	mm	700
Spindle motor power	kW	2.2
Machine weight	kg	1600
Overall dimension	mm	400 x 400 x 550
