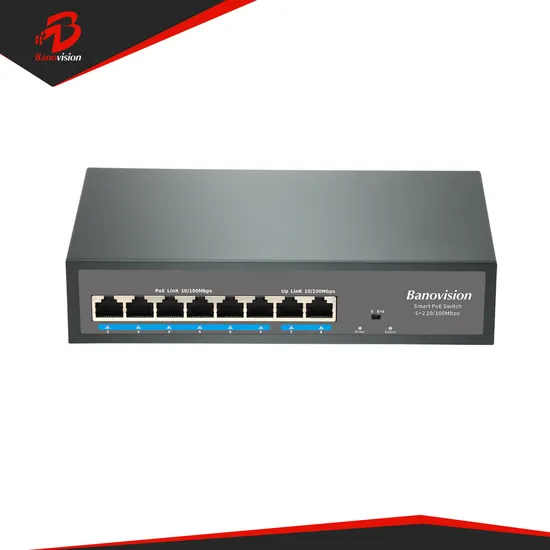

Banovision Poe Switch 4 8 16 24 48 Ports 10/100m & Gigabit Unmanaged 52V Ethernet Fiber Switch Poe IEEE802.3af/at Suitable CCTV, NVR
| US$11.50 | 30 Pieces (MOQ) |
Basic Info.
Model NO.
BN-PK0622M
Transmission Rate
100Mbps
Ports
6CH
Features
6*10/100Mbps Poe Port,2*10/100Mbps up Link Port
Transport Package
Package
Specification
Carton
Trademark
Banovision
Origin
Shenzhen, China
HS Code
8517623200
Production Capacity
50000/Per Month
Product Description
6POE+2FE 250m Long Distance
POE Switch (Built-in)
Features:
* 6*10/100mbps POE port,2*10/100mbps UP Link port
* 250m Distance
* Support IEEE802.3AF/AT
* Whole Power:78W(52V 1.5A)
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 6 10/100Mpbs adaptive high speed forwarding data packet non-lost port
* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
* Each port max. power supply reached 30W.
Application:
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
Specification:
| Model | BN-PK0622M |
| POE Port | 1 to 6 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | 1/2+,3/6- |
| Whole Power | ≤78W (52V 1.5A) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Power Distance | ≤250m |
| Network Standard | IEEE 802.3, IEEE802.3u,802.3x,802.3af/at |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
| Data Distance | ≤250m |
| Switch Capability | 1.6Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 10BASE-T:14880PPS/port |
| 100BASE-tx:14800pps/port | |
| MAC Address | MAC address table 1K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging |
| IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
| LED Indicator | LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender |
| Working Environment | Working temperature:-10°-- 55°C |
| Weight | 1kg |
| Size | 200mm*118mm*44mm(L*W*H) |
