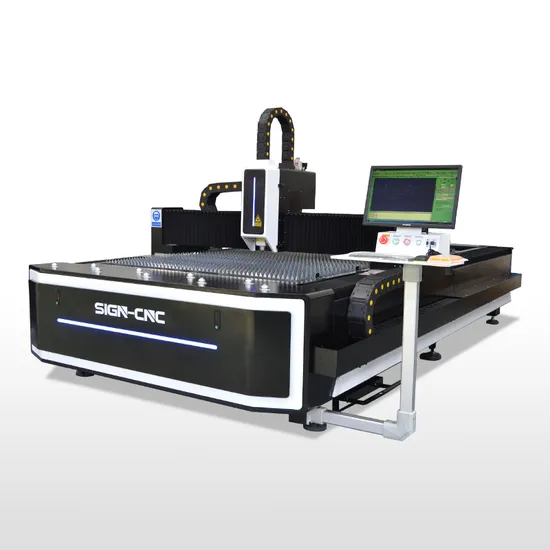

Sign Dowell LPG Raycus 1W 2kw 3W 6kw 8kw 30kw CNC Steell Plaatwerk Fiber Laser High Level
Basic Info.
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Model
Sign-1325
Laser Source
Raycus-Rfl Series Laser Source
Laser Cutting Head
Raytools Bm110 Auto Focus Cutting Head
Laser Wavelength
1064nm
Min Line Width
0.1mm
Positioning Accuracy
0.05mm
X,Y Axis
High Precision PMI Linear Guide Rail and Yyc Rack
Z Axis
High Precision PMI Linear Guide Rail,Tbi Ball Scre
Max.Running Speed
60m/Min
Max.Cutting Speed
≤45m/Min (Depends on Material)
Transport Package
Wooden Package
Specification
21 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year
Product Description
SIGN Dowell lpg Raycus 1W 2kw 3W 6kw 8kw 30kw Cnc Steell plaatwerk Fiber Laser high levelSpecification
| Model | SIGN-1530 |
| X, Y Working size | 1500x3000mm |
| Laser Source | Raycus-RFL series laser source |
| Laser Cutting Head | Raytools BM110 Auto focus cutting head |
| Laser Wavelength | 1064nm |
| Min Line Width | 0.1mm |
| Positioning Accuracy | 0.05mm |
| X,Y Axis | High precision PMI Linear Guide rail and YYC rack |
| Z Axis | High precision PMI Linear Guide rail,TBI ball screw |
| Max.Running Speed | 60m/min |
| Max.Cutting Speed | ≤45m/min (Depends on material) |
| Servo Motor & Driver | Japanese YASKAWA 850W+400W Zaxis with brake |
| Working Voltage: | AC380V/50/60Hz |
| Speed Reducer | Japanese Shimpo planetary reducer |
| Control System | CYPCUT2000C Auto Focus |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Water Chiller | Industrial circulation S&A water chiller |
| Running Temperature | 0 degree - 45 degree |
| Assisting Gas | Compressed air, oxygen and nitrogen |
