6000kg/H Quality Assurance Waste Plastic Pet Bottles Washing Recycling Line
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
HAORUI6000
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Two
Automation
Automation
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Machine
Pet Bottle Washing Line
Solution
From Dirty Pet Bottle Into Clean and Dry Flakes
Raw Material
Pet Waste Bottles
Material
Carbon Steel or 304ss
Motor
Siemens or Other Brand
Inverter
ABB
Electrical Panel
Chinese Famous Brand
Capacity
3000kg/H
Used for
Fibre and New Bottle Producing
Brand
Haorui
Cushing Method
with Water
Warrant
2 Years
Color
Can Be Customerized
Certificate
ISO9001 CE
Delivery Time
Within 60days
Transport Package
PE Film Strength
Specification
80m*15m*6m
Trademark
HAORUI
Origin
China
HS Code
84778000
Production Capacity
100sets One Year
Product Description

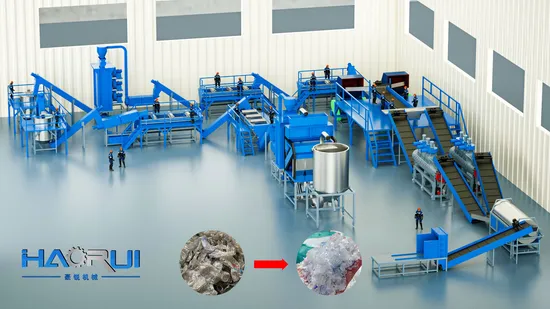

6000kg/h Quality Assurance Waste Plastic Pet Bottles Washing Recycling LineThis 6000kg/h PET bottle washing line were installed in Turkey.
PET bottle will be through crushing, washing , drying then the finally product is clean and dry PET flakes.Flakes size:12mm
they will produce the PET flakes into fibre. The level can be also food grade .
"HAORUI"series of products as following:
1.PET bottle washing line and granulator machine , capacity :1000~7000kg/h
2.HDPE LDPE film/woven bag washing line and pelletizing machine Capacity:300~2000kg/h
3.rigid PP bottle/bucket/ basin/drum washing line and pelletizing machine capacity:300~3000kg/h
| machine | 6000kg/h Quality Assurance Waste Plastic Pet Bottles Washing Recycling Line |
| Solution | Clean PET flakes |
| Flakes size | 12~16mm |
| Machine size | 80m*18m*8m |
| Energy consumption | 600kw/h |
| Water consumption | 4tons/h(can be recycled) |
| Electrical | 380V 50HZ or according to customers' design |
| Workers | Feeding PET bales workers by forklift:2persons Sorting material:10~15 persons Collecting final material:2 persons Manager:1~2 persons |
please check our machines in detail
machine list: bale breaker --belt conveyor with metal detector---belt conveyor--trommel screen ---belt conveyor--label remover--sorting platform--
PET crusher (two sets)--floating tank --screw loader--floating tank --pvc separator--hot washing tank--screw loader--hot washing --screw loader--floating tank --screw loader--floating tank--dewatering machine--pvc separator--silo
| machine | PET bottle bale breaker , make the PET bale break to loose before crushing |
| bale size | 1200mm*900mm*850mm / 1130mm*600mm*800mm |
| capacity | more than 3000kg/h |
| machine size | 4.8M(L)*1.5M(W)*2.5M(H) |
| machine | belt conveyor with metal detector (conveyor the plastic material into next machine ) |
| belt material | rubber or pvc |
| machine size | 1000mm (W)*8000mm(L) |
| machine | trommel screen (material sorting is controlled by the size of particle size), separate the stone,sand ,metal ,etc |
| size | roller diameter:1500mm Length:5000mm |
| roller speed | ≤ 130RPM |
| bottom design | cone |
welcome to send me feedbackhttps://haoruijixie.en.made-in-china.com/contact-info.html
| machine | label remover |
| function | Seperate the label of the PET bottles |
| Shaft length:6000mm | Tube Dia:800mm |
| Knife material | alloy |
| capacity | 3000kg/h |
| machine | plastic crusher |
| function | crush the PET bottle into different size flakes with water ,high capacity |
| machine size | 2300mm*2600mm*3600mm |
| capacity | more than 3000kg/h |
| motor | 110kw |
| machine | floating tank |
| function | wash the PET flakes in cold water |
| number of roller wheel | 4pcs |
| dimension | 6m(L)*2.3m(W)*1.2m(H) |
| machine | hot washing tank( wash the PET flakes in hot water,the flakes will be more clean ) |
| heating type | gas,steam ,coal, electromagnetism |
| size | 2.2m(Dia.)*3.5m |
| Water temperature | Around 90ºC |
| machine | pvc separator(remove the pvc ,PE label from the PET flakes,PET flakes will be more pure ) |
| air blower | 3sets |
| blower motor | 2.2kw |
| Pvc separator ratio | 0.03% |
the final product: PET falkes
flakes data:
size:10~16mm
moisture:less than 1%
pvc content:0-50ppm
glue:0-50ppm
