Pipe Welding Positioner Welding Equipment

Product Description

Product Description
Pipe welding cars are widely used in petroleum, petrochemical, chemical, thermal, and heaven
Of course
Intovasical, non -abuse type adsorbing magnetic adsorption on the pipeline, welding while welding
Automatic crawling, installation, use and disassembly quickly complete, very convenient; there is
The rail type is mainly used for welding and orbit of stainless steel or pipelines that cannot be magnetized.
The specifications are customized according to welding needs.
Welding car magnetic adsorption on the pipeline, through preset parameters, handheld wired control
The welded welding parameters control the welding car automatically welded on the pipeline.
Features:
The entire position of the pipeline is automatically automatically automatically automatically automatically
Welding, welding process uses high -efficiency, low -cost carbon dioxide gas or mixing
Gas gas protection (80%grillet+20%carbon dioxide).
Performance advantage:
Applicable work conditions: various long -term pipelines, thermal pipelines, buried pipelines or workers
Art channels and other on -site welding mouths.
Welding material: carbon steel, stainless steel, alloy steel, low temperature steel, etc.
Applicable welds: more than 150mm in the pipe diameter, and the wall thickness is greater than 5mm
The pipes can be applicable, and the thick wall tube can use multi -layer and multi -channel welding.
Welded car: The design is light and easy to carry, and the permanent magnet adsorption, special
The pipelines suitable for the entire pipeline at the construction site are welded.

Product Structure Introduction

Body components: welding gun oscillator, slider, welding gun handle, control box, control panel and other accessories
(1) Swing: drives the welding gun to perform pendulum swing welding
(2) Driving part: the power device for the trolley to move, consisting of four magnetic forces It consists of wheels, helical gears, chains, and sprockets
(3) Slider part: a device for adjusting the position of the welding gun. It can be fine-tuned forward and backward during welding.
(4) Welding gun clamp: a clamping device for the welding gun, which can adjust the angle of the welding gun.
(5) Control box; all movements of the car can be adjusted. For details, please refer to the control panel operation method.
Application Conditions

Control introduction
1, Knob for adjusting current and voltage: Turn the knob clockwise to increase the value (The tractor has two power plugs of 3P and 8P, when using 3P plug, the current and voltage adjustment knob is invalid, and then the current and voltage of the wire feeder must be adjusted; Current and voltage control knob is effective when using 8P plug)
2, Selection knob for welding/non-welding: the knob must be in the welding position to weld
3, Point feed: manual wire feed device
4, Walking switch: control the car walking and stopping, if the "welding/non-welding" switch is placed in the "non-welding" position, open the walking switch, the tractor only walking without welding
5, Walking speed adjustment: the adjusting knob of tractor walking speed. It is recommended to adjust the tractor walking speed after turning on the walking switch
6, Choice of walking direction: choose to walk left or right
7, Power switch and indicator light: the indicator light is on after the power is energized
Product Parameters

Types		Content	Remarks
Buggy	Power supply	AC 110V-220V
	Size	330* 240 * 310	L×W×H
	Weight	16Kg	Wiggler included
	Moving	Four-wheel drive	Magnetic wheel
	Travel speed	0∼700mm/min
	Oscillating motor	DC24V 18RPM
	Range of torch adjustment Range of torch adjustment	Up and down
		Front and back	85mm
		Operating Angle adjustment range	360 °
		Make the Angle adjustment range	0 °
Control	Operating functions	Swing mode selection
		Oscillating velocity	0-10RPM (indicated with scale)
		Swing range	0-±10° (indicated with scale)
		Left-right residence time adjustment	0-2S (shown with scale)
		Center move	0 to + 8 °
		Tap the wire feed
		Walk start/stop
		Welding current/voltage control
		Travel direction selection
		Walking speed adjustment	0 to 1000mm/min (shown on a scale)
		Solder/non-solder selection

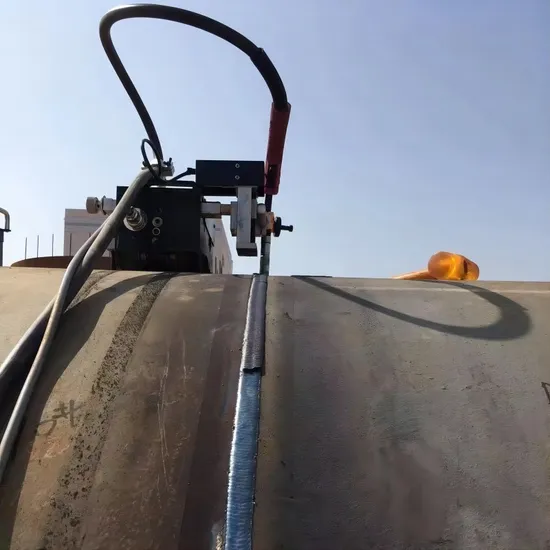

On-Site Usage
