Hydraulic Four Post Car Lift / Wheel Alignment hoist for Parking lift Equipment Machine V-PBS-C-6340

Product Details

Product Description

Product Description
Product Description
#V-PBS-C-6340

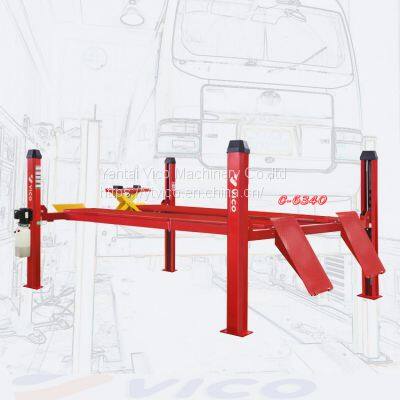

FOUR POST LIFT / WHEEL ALIGNMENT
(1) Adopt the electric release, manual and pneumatic release.
(2) Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
(3) Hydraulic cylinder drive, rope drive, quiet and smooth lifting.
(4) With wire control security lock, with a wire rope fracture protection, operation safety.
(5) Adopt electrical release, eight -point locking system, easy to operate.
(6) Can be locked in the desired height of operation, safety and reliability.
(7) Runway spacing is adjustable for different wheel base vehicle.
(8) With the second lift pulley, can adopt the manual release, pneumatic release and hydraulic
Detail Photos
Technical specification

Product name	V-PBS-C-6340
Lifting Capacity	3500kg/4000kg/5000kg
Lifting Height	(Main) 1500mm (Jack) 350mm
Min. Height	200mm
Lifting Time	50s-60s
Length Of The Platform	4200mm/4500mm/5000mm
Platform Width	550mm
Motor Power	2.2kw-380v or 2.2kw-220v
Oil Pressure Rating	24MPa
Air Pressure	0.6-0.8MPa
Weight	1200kg/1250kg/1350kg

Package
Export Standard Package
