Big Capacity Fzh Type Food Chemical Square Cone Pyramid Mixer

Product Description

PRODUCT CATEGORIES

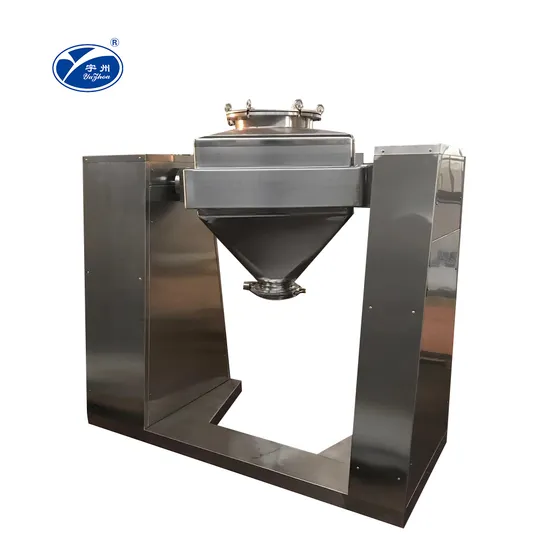

Product Description FZH Series Square Cone Mixer
FZH Series Square Cone Mixer is widely used as the mixing machine for solid medicine powder in pharmaceutical industry wordwide. The mixing uniformity is high, the mixing hopper is movable, it is very convenient for material loading, mixing, discharging and cleaning. It is easy to integrate with the upstream and downstream process, the problem of cross pllution and fly-dust caused by multi-material-transferring can be solved. Different material hoppers can be equipped with the machine, so to meet the mixing equipment of large batch capacity, and multi-varities. This machine is the ideal equipment for mixing and batch mixing, and has widely application in chemical industy, food industry, light industry and other industies.

Model	FZH300	FZG500	FZG1000	FZG1500	FZH2000	FZG3000
Mixing barrel volume(L)	300	500	1000	1500	2000	3000
Maximum loading volume(L)	240	400	800	1200	1600	2400
Maximum loading weight(kg)	150	250	500	750	1000	1500
Spindle speed(r/min)	14	13	12	10	8	6
Motor Power(kw)	1.5	2.2	4	5.5	7.5	11
weight(kg)	500	700	1000	1500	2000	3000
Overall Dimensions (L × W × H)(mm)	1850× 1280× 1980	2200× 1530× 2220	2800× 2000× 2820	2930× 2300× 2950	3100× 2460× 3160	3350× 2820× 3800

PRODUCT INTRODUCTION Features of Square Cone Mixer
1. Square Cone Mixer is novel in design, compact in structure, beautiful in appearance, high in mixing uniformity, and the volume charging coefficient reaches 0.8.
2. Low rotation height, stable operation, reliable performance and easy operation.
3. The inner and outer walls of the barrel are mirror-polished, no dead corners, easy to discharge, easy to clean, no cross contamination, and meet GMP requirements.
4. Square Cone Mixer adopts frequency speed control, man-machine interface operation in clear picture, easy to operate; built-in automatic and manual switching control mode is provided.
5. According to user's requirements, vacuum feed and screening machine can be equipped to cannect the front and rear procedure. COMPANY INFORMATION
